Planet SG-500 [234/319] Example

SG-500 VPN Security Gateway User’s Manual

- 229 -

5.2 Example

Set up the policy that can monitor the internal users. (Take Logging, Statistics,

and Alarm Threshold for example)

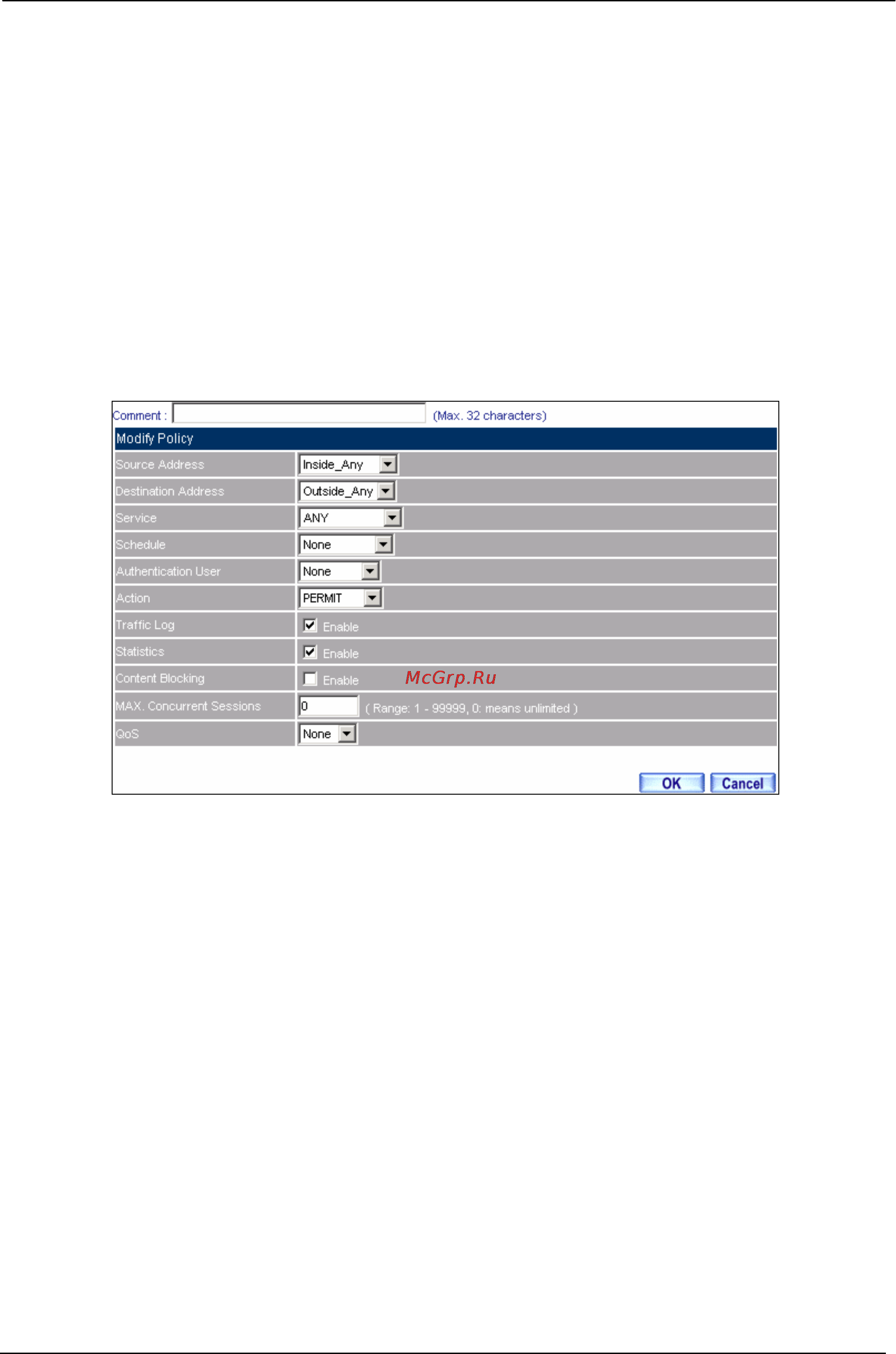

STEP 1﹒Enter the following setting in Outgoing Policy:

 Click New Entry

 Select Logging

 Select Statistics

 Click OK

Setting the different Policies
