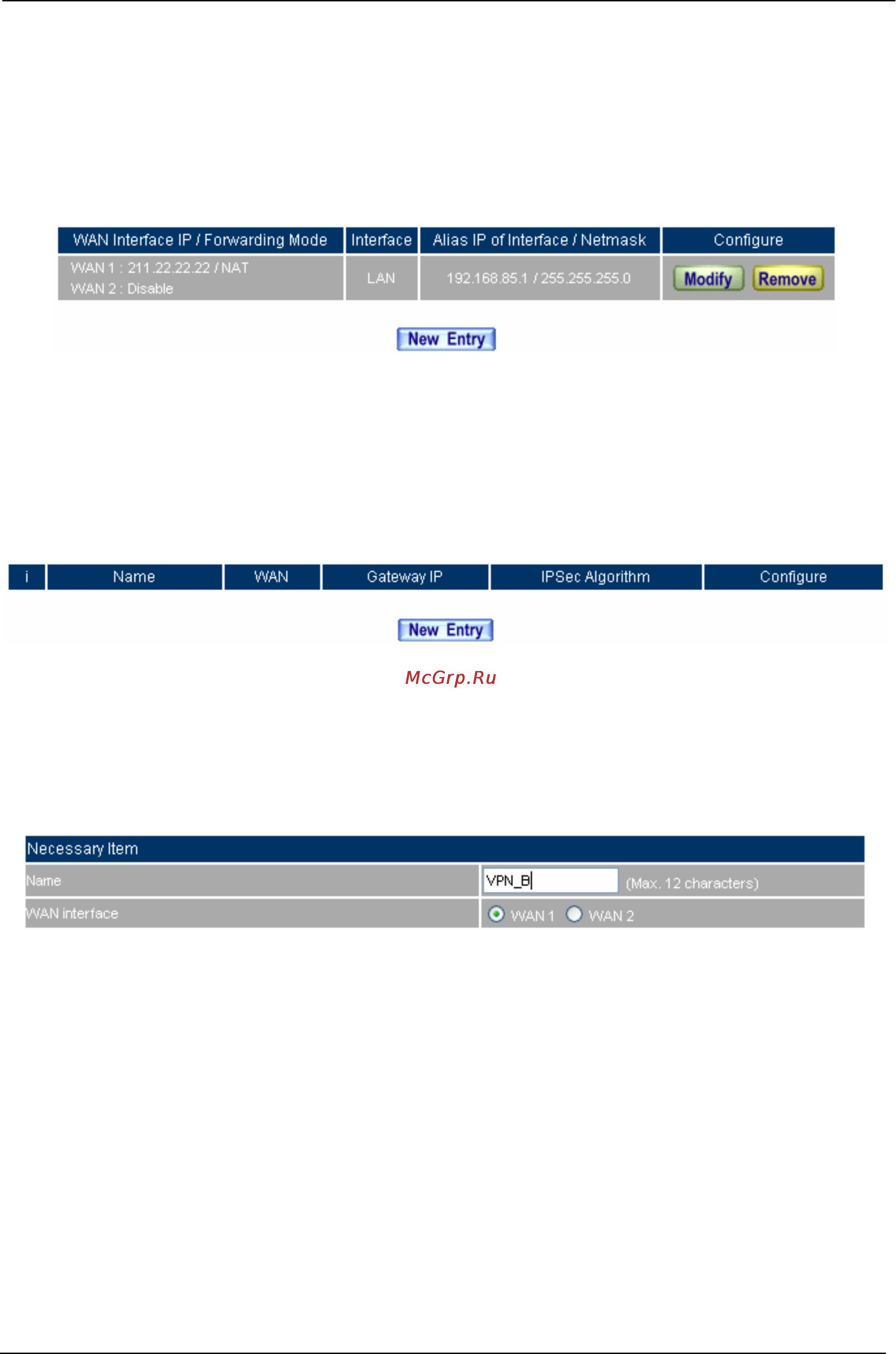

SG-500 VPN Security Gateway User’s Manual
- 133 -
The Default Gateway of Company B is the LAN IP of the SG-500 192.168.20.1. Follow
the steps below:
STEP 12 . Enter the following setting in Multiple Subnet of System Configure function:
Multiple Subnet Setting
STEP 13 . Enter the default IP of Gateway of Company B’s SG-500, 192.168.20.1 and select IPSec Autokey
in VPN. Click New Entry.
Figure11-20 IPSec Autokey Web UI
STEP 14 . In the list of IPSec Autokey, fill in Name with VPN_B.
IPSec Autokey Name Setting
