SG-500 VPN Security Gateway User’s Manual
- 67 -
4.5 Group
Setting service group and restrict the specific users only can access to service
resource that provided by this group through policy (Group: HTTP, POP3,
SMTP, DNS)

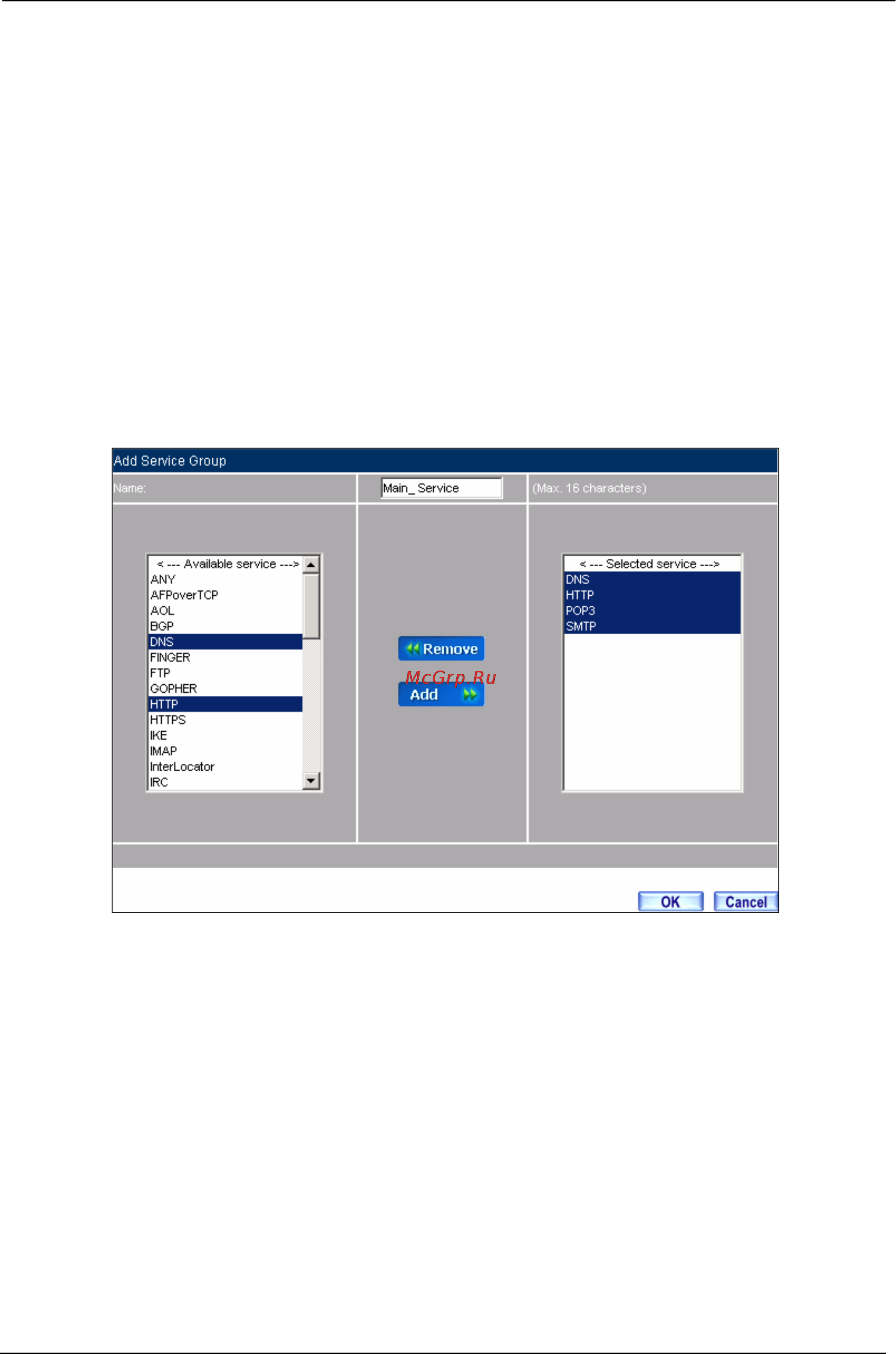

STEP 1﹒Enter the following setting in Group of Service:
Click New Entry
Name: Enter Main_Service
Select HTTP, POP3, SMTP, DNS in Available Service and click Add
Click OK
Add Service Group
