3.4 DMZ

Setting DMZ Interface Address (NAT Mode)

STEP 1﹒Click DMZ Interface

STEP 2﹒Select NAT Mode in DMZ Interface

 Select NAT in DMZ Interface

 Enter IP Address and Netmask

STEP 3﹒Select Ping and HTTP

STEP 4﹒Click OK

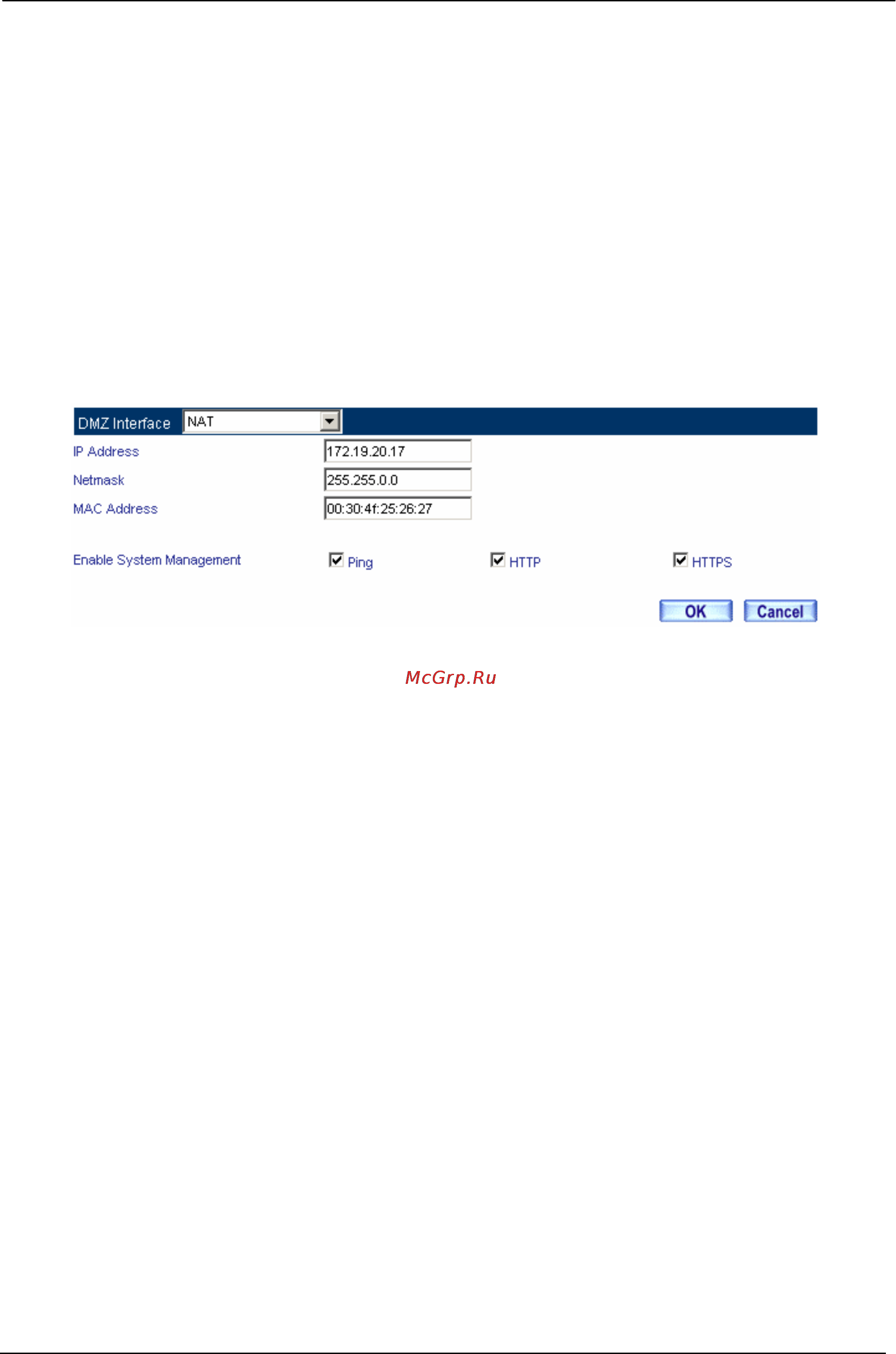

Setting DMZ Interface Address (NAT Mode) Web UI
