Planet SG-500 [29/319] Adding multiple subnet

SG-500 VPN Security Gateway User’s Manual

- 24 -

Adding Multiple Subnet

Add the following settings in Multiple Subnet of System function:

 Click on New Entry

 Alias IP of LAN Interface： Enter 172.16.30.1

 Netmask：Enter 255.255.255.0

 WAN：Enter Interface IP211.22.22.22, and choose NAT in Forwarding Mode

 Click OK

 Complete Adding Multiple Subnet

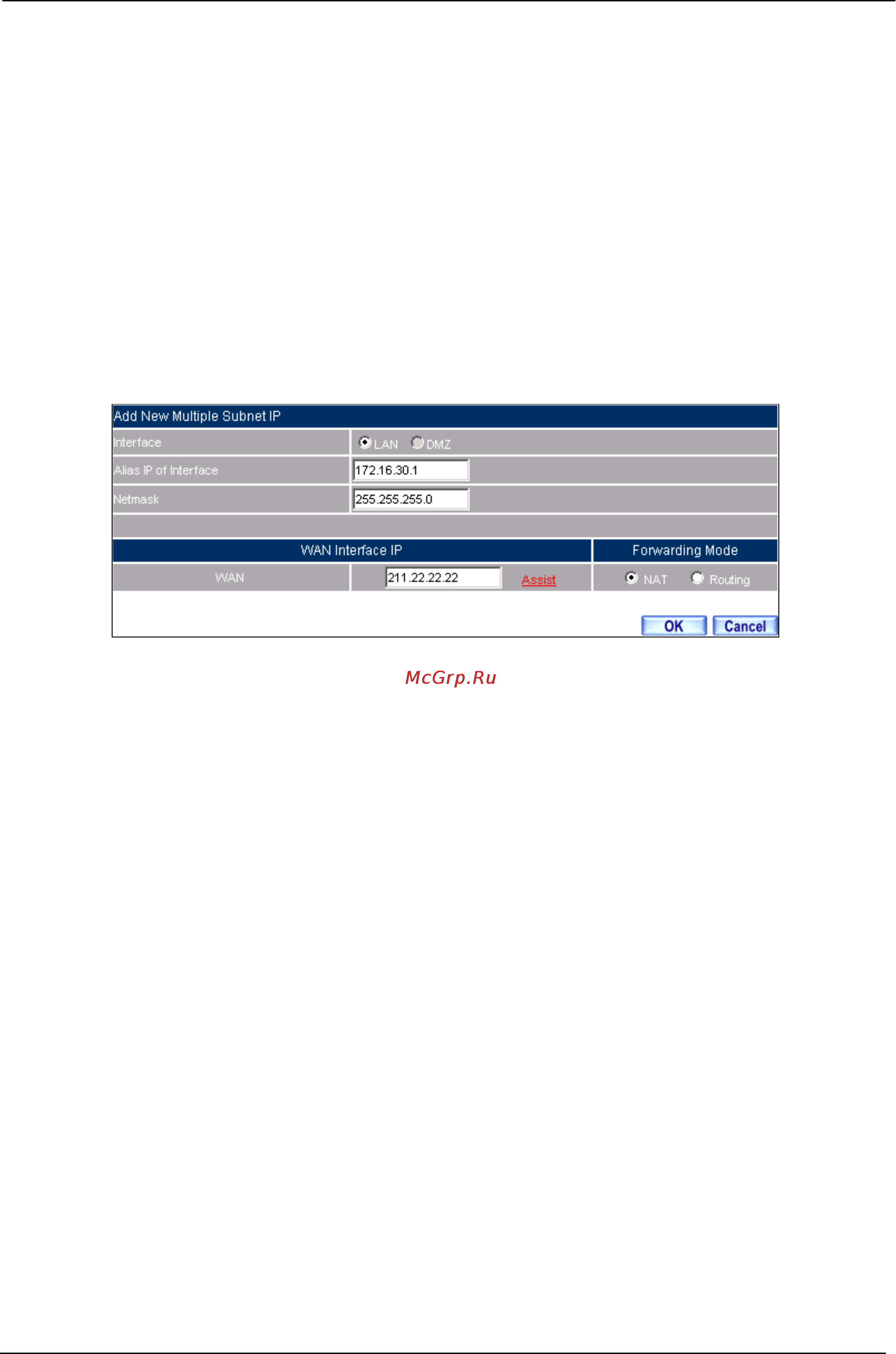

Add Multiple Subnet Web UI
