Planet SG-500 [87/319] Connecting to the appointed website after authentication

SG-500 VPN Security Gateway User’s Manual

- 82 -

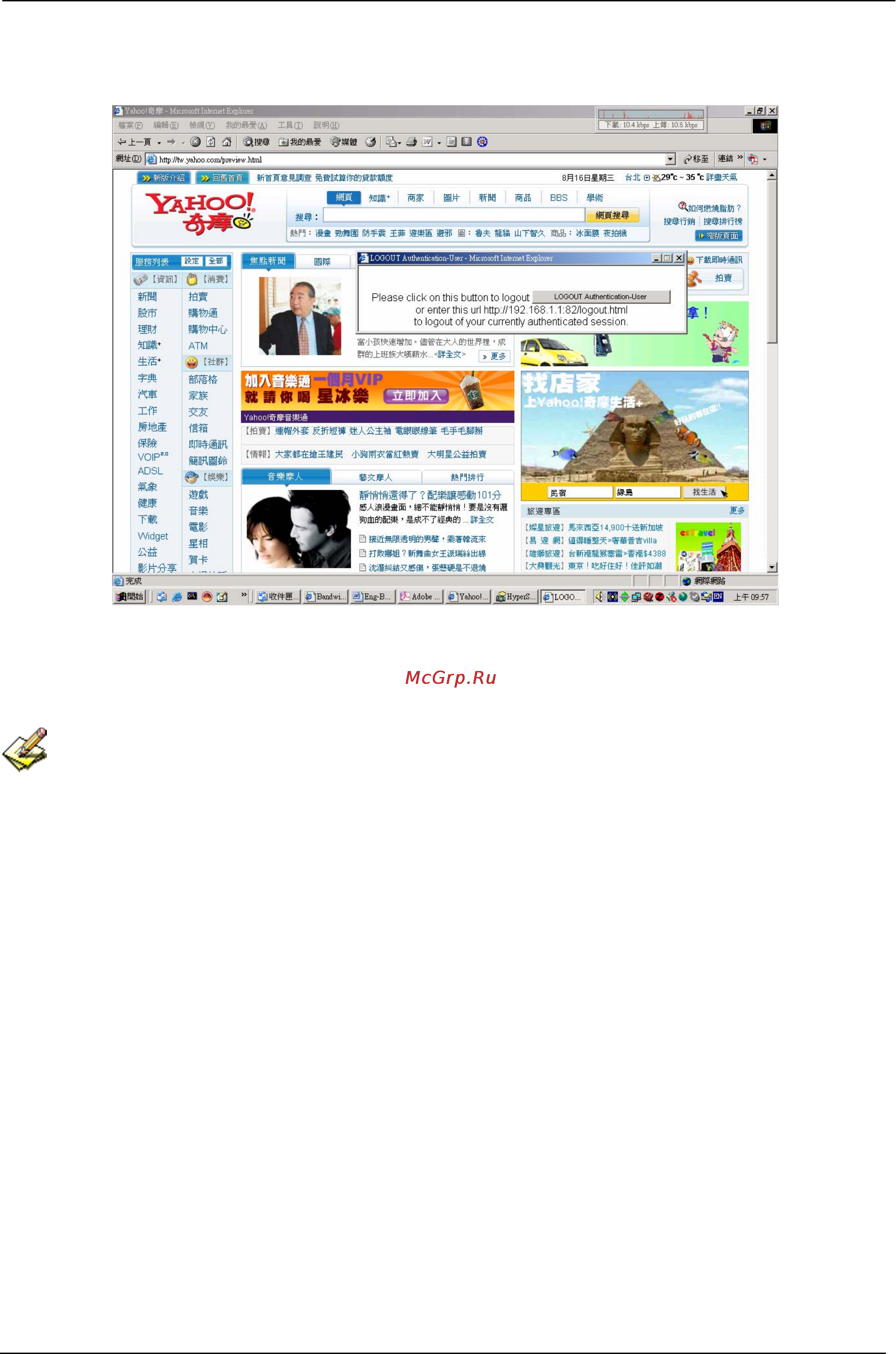

z It will connect to the appointed website after passing Authentication.

Connecting to the Appointed Website After Authentication

If the users ask for authentication positively, they can enter the LAN IP by the Authentication port

number. And then the Authentication Web UI will be displayed.
