SG-500 VPN Security Gateway User’s Manual

- 33 -

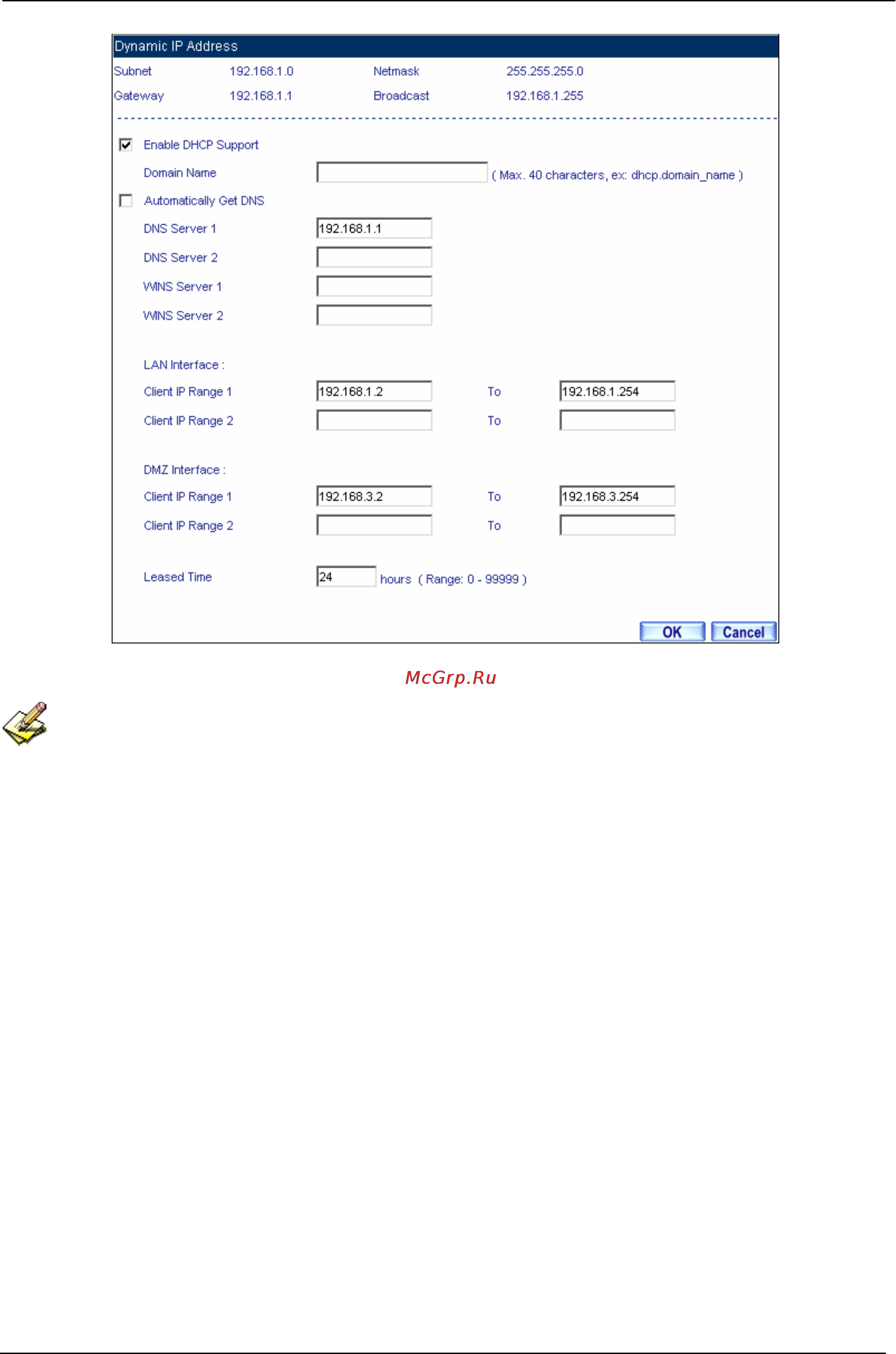

DHCP Web UI

When selecting Automatically Get DNS, the DNS Server will lock it as LAN Interface IP. (Using

Occasion: When the system Administrator starts Authentication, the users’ first DNS Server must be the

same as LAN Interface IP in order to enter Authentication Web UI)
