SG-500 VPN Security Gateway User’s Manual

- 34 -

2.12 DDNS

STEP 1﹒Select Dynamic DNS in System function. Click New Entry button

 Service providers：Select service providers.

 Automatically fill in the WAN IP：Check to automatically fill in the WAN IP.。

 User Name：Enter the registered user name.

 Password：Enter the password

 Domain name：Enter Your host domain name

 Click OK to add Dynamic DNS.

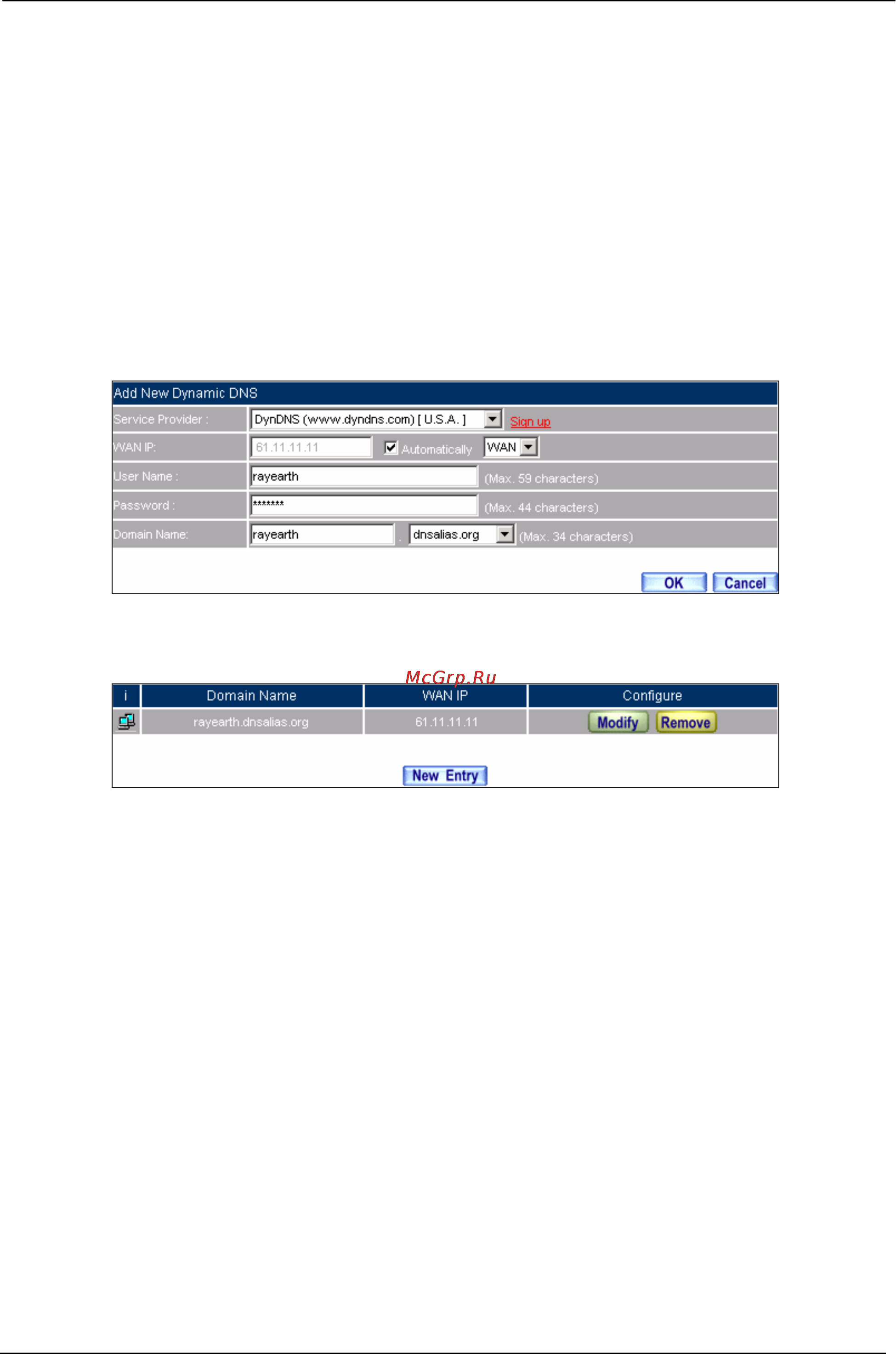

DDNS Web UI

Complete DDNS Setting
