SG-500 VPN Security Gateway User’s Manual
- 210 -
Example.4
The way to set the IPSec VPN connection between two SG-500 appliances. (The GRE
packets) (The IPSec algorithm, 3DES encryption, MD5 authentication)
The Deployment
Company A：
WAN1 IP： 61.11.11.11
WAN2 IP： 61.22.22.22
LAN IP： 192.168.10.X
Company B：
WAN1 IP： 211.22.22.22
WAN2 IP： 211.33.33.33
LAN IP ： 192.168.20.X
The A and B Company applicated two local certificates from different CA Server.
We use two SG-500 devices to be the platform. Assume that the A Company 192.168.10.100 want to build up
the VPN to B Company 192.168.20.100 , in order to download the shared documents. (Use the GRE/IPSec
packets algorithm)

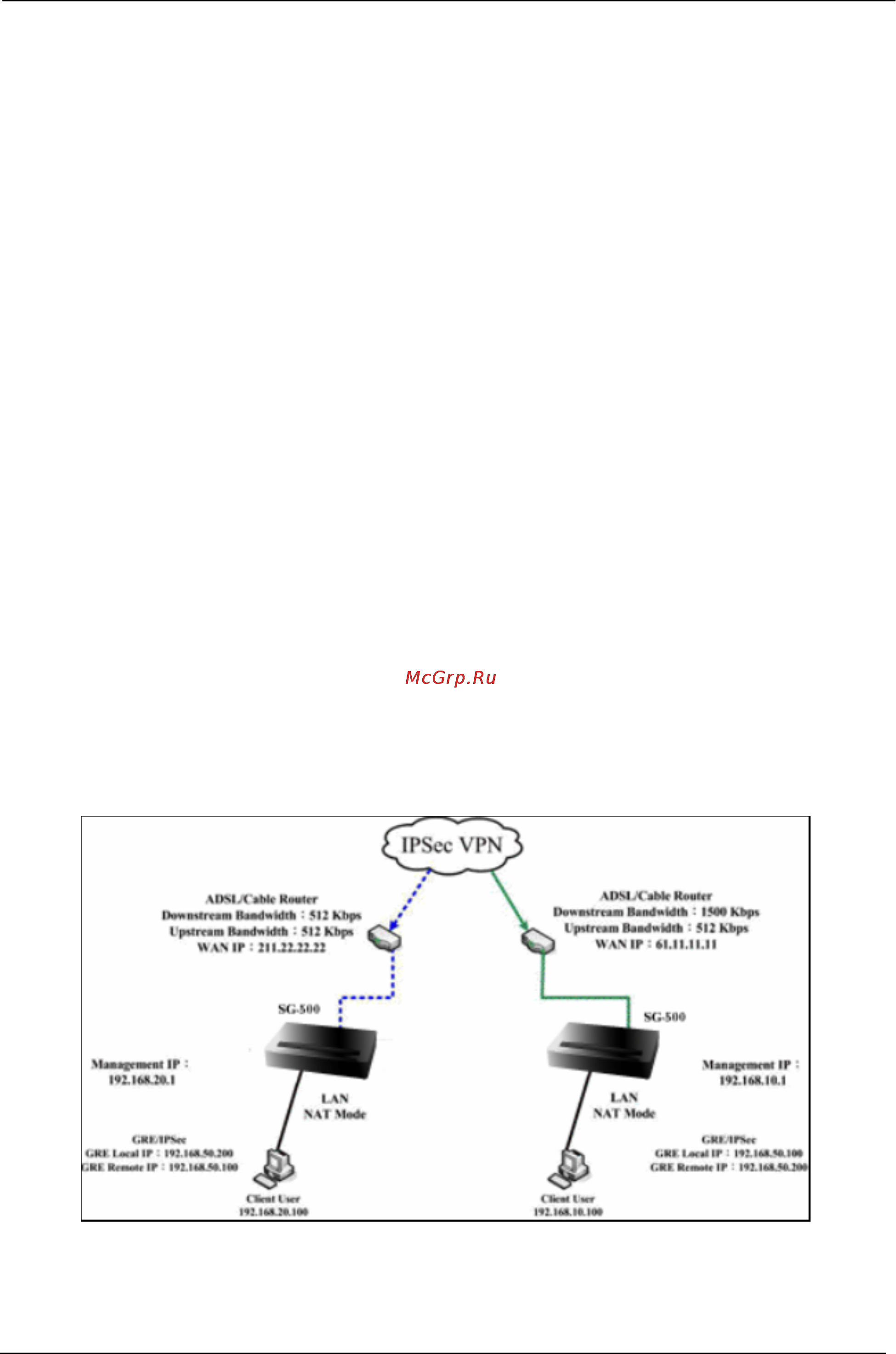

TEST Environment
The IPSec VPN GRE/IPSec deployment
