Planet SG-500 [286/319] Connection log

SG-500 VPN Security Gateway User’s Manual

- 281 -

8.4 Connection Log

To Detect Event Description of WAN Connection

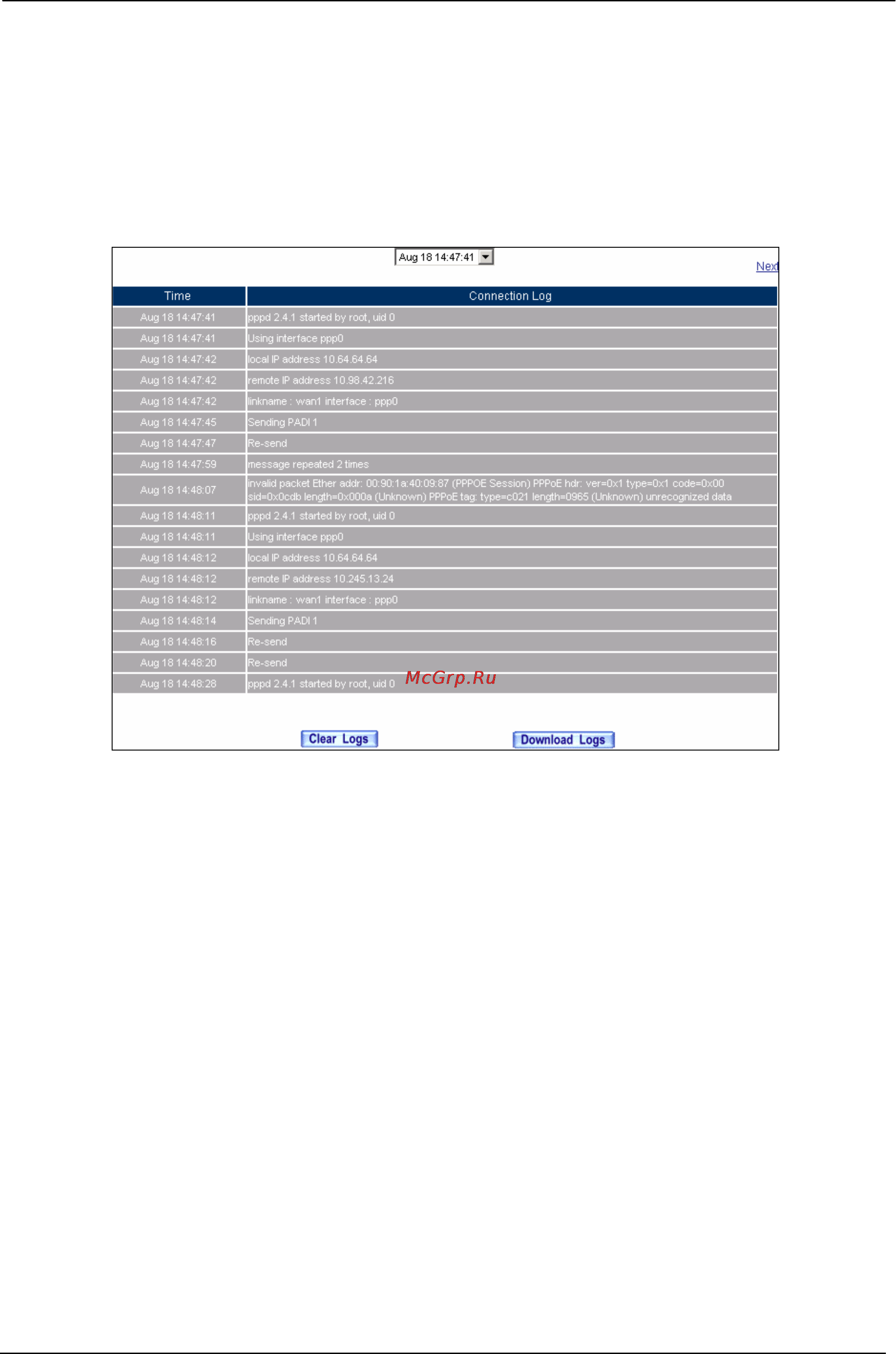

STEP 1﹒Click Connection in LOG. It can show up WAN Connection records of the SG-500.

Connection records Web UI
