Planet SG-500 [23/319] System settings importing

SG-500 VPN Security Gateway User’s Manual

- 18 -

System Settings- Importing

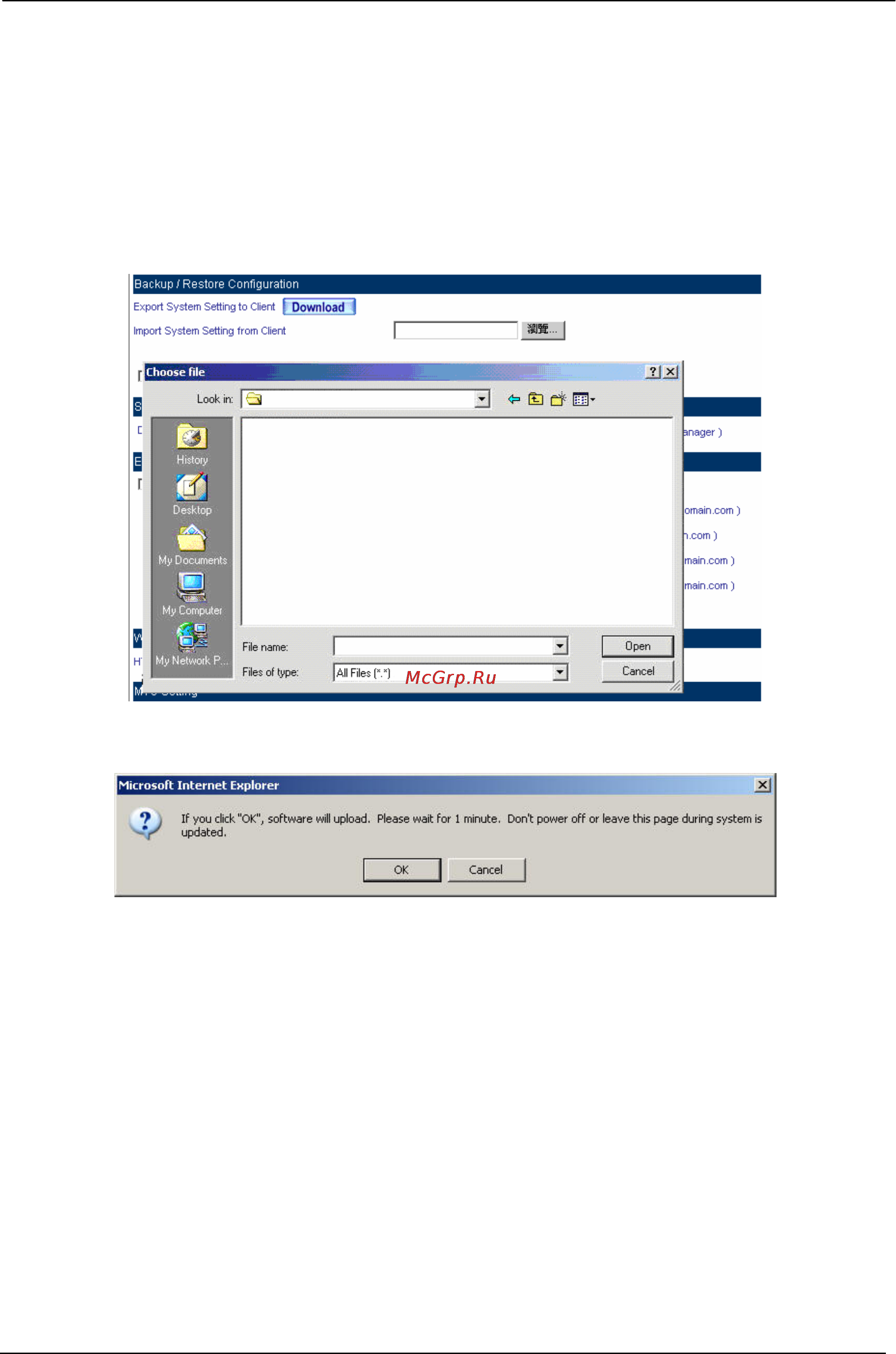

STEP 1﹒In System Setting Web UI, click on the Browse button next to Import System Settings

from Client. When the Choose File pop-up window appears, select the file to which

contains the saved SG-500 Settings, then click OK.

STEP 2﹒Click OK to import the file into the SG-500

Enter the File Name and Destination of the Imported File

Upload the Setting File Web UI
