SG-500 VPN Security Gateway User’s Manual

- 127 -

The Default Gateway of Company A is the SG-500 LAN IP 192.168.10.1. Follow the steps

below:

STEP 1 . Enter the default IP of Gateway of Company A’s SG-500, 192.168.10.1 and select IPSec Autokey

in VPN. Click New Entry.

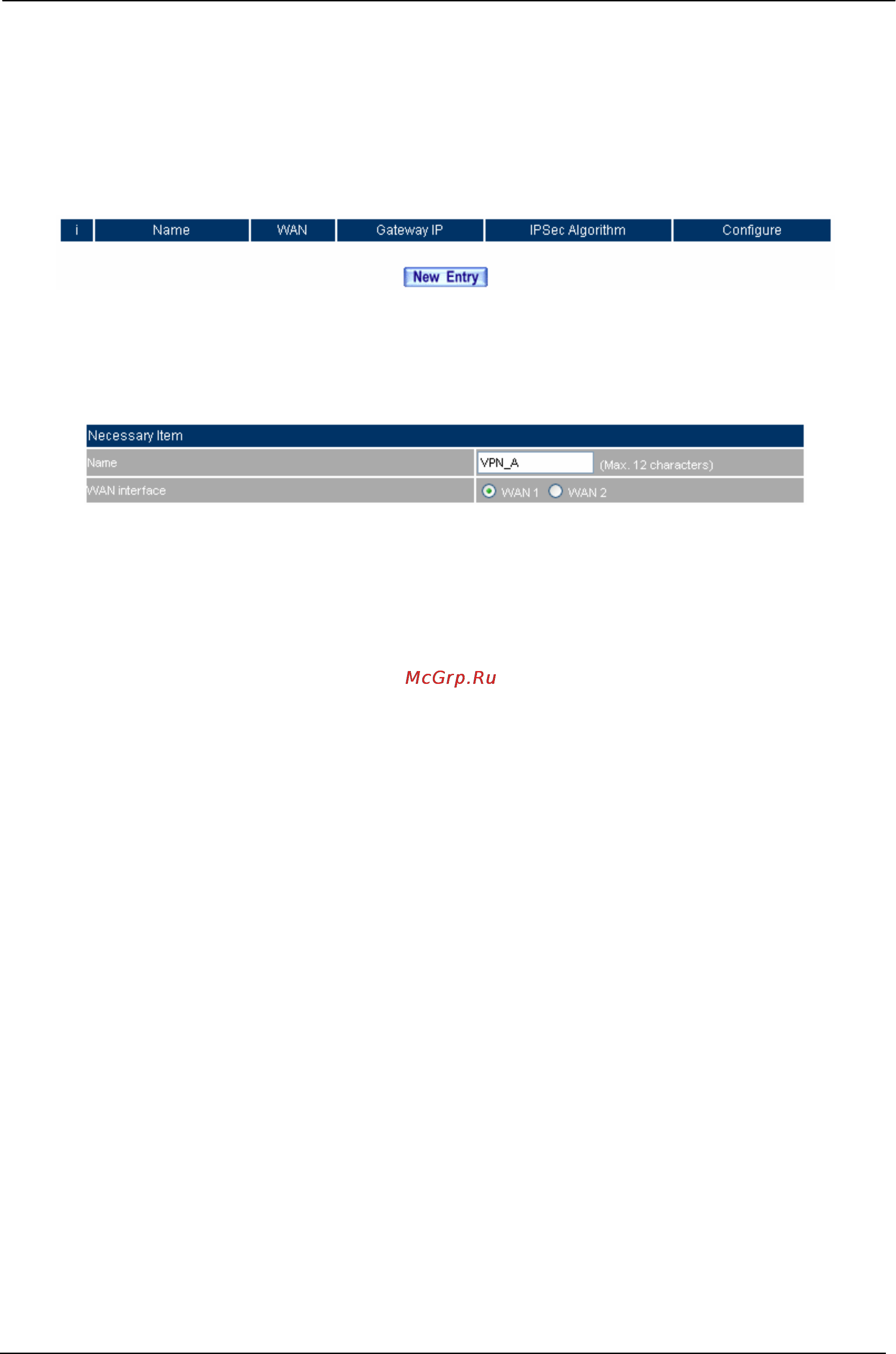

IPSec Autokey WebUI

STEP 2 . In the list of IPSec Autokey, fill in Name with VPN_A.

IPSec Autokey Name Setting
