Planet SG-500 [151/319] The b company s real ip is 211 2 2 2 add the following settings

SG-500 VPN Security Gateway User’s Manual

- 146 -

The B Company’s real IP is 211.22.22.22, add the following settings：

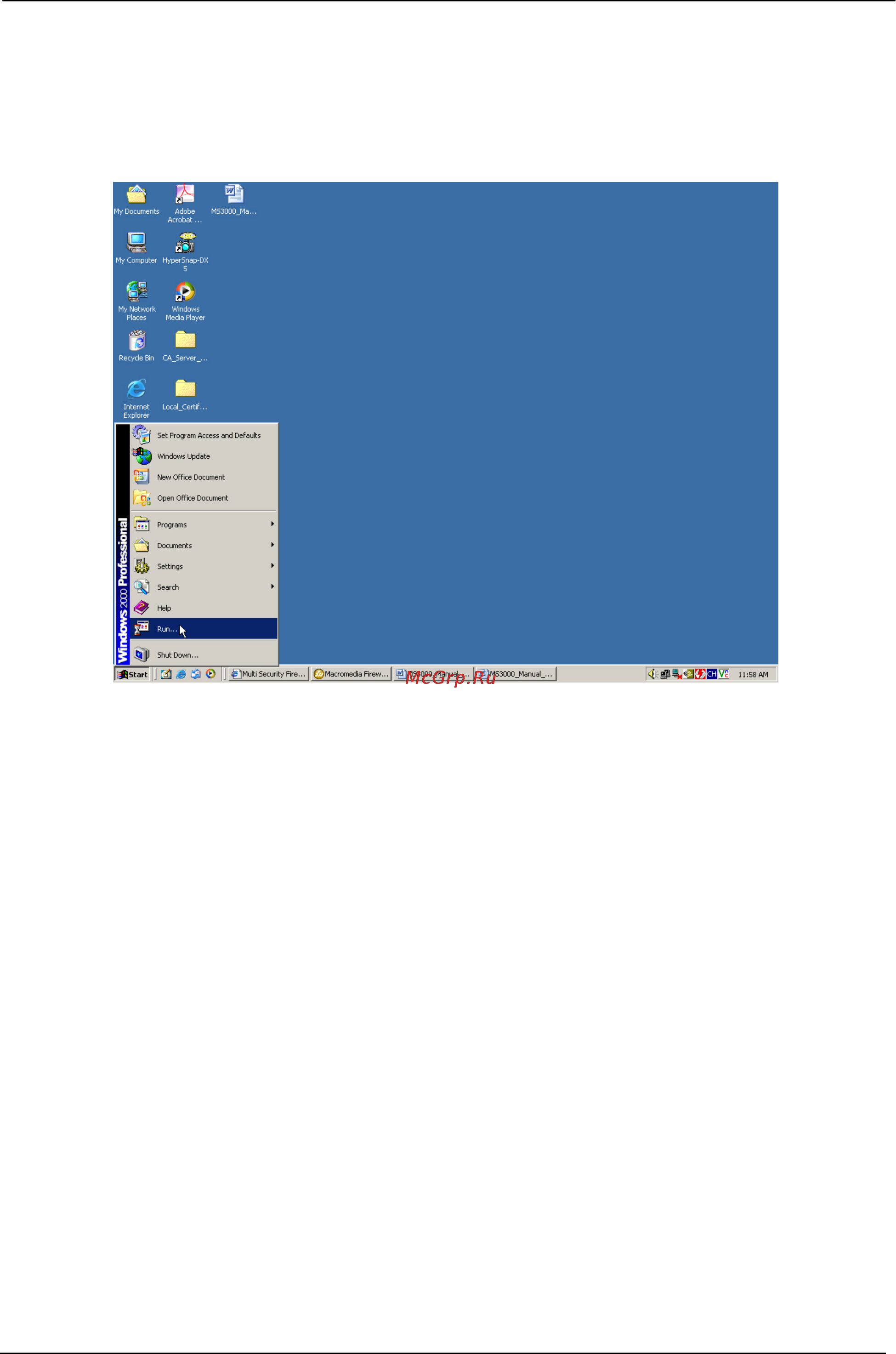

STEP 12 . Click Start Æ Run in Windows 2000

Start the IPSec VPN setting in Windows 2000
