Planet SG-500 [237/319] Forbid the users to access to specific network take specific wan ip and content blocking for example

SG-500 VPN Security Gateway User’s Manual

- 232 -

Forbid the users to access to specific network. (Take specific WAN IP and

Content Blocking for example)

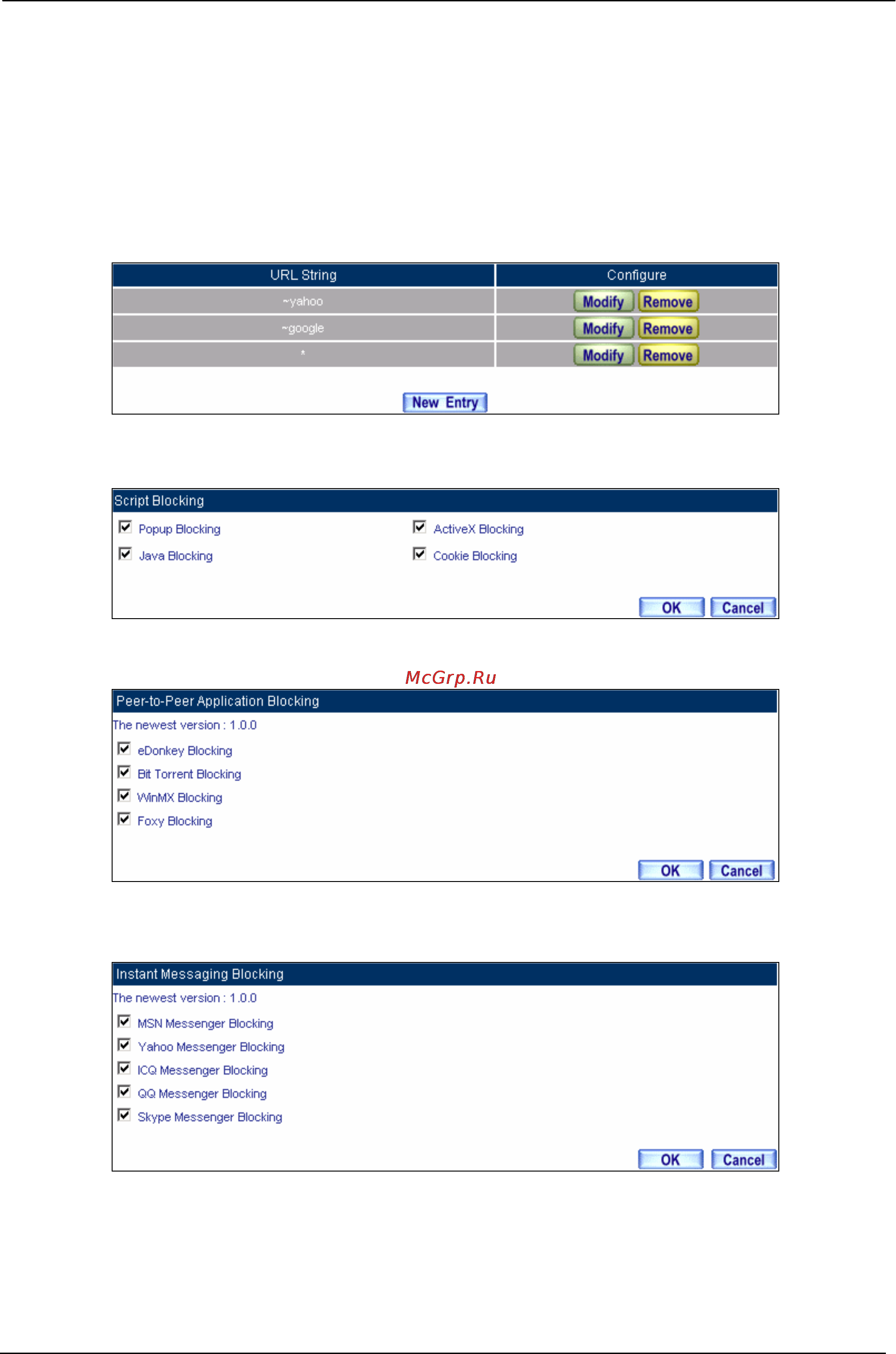

STEP 1﹒Enter the following setting in URL Blocking, Script Blocking, P2P Blocking, IM

Blocking, and Download Blocking in Content Blocking function.

URL Blocking Setting

Script Blocking Setting

P2P Blocking Setting

IM Blocking Setting
