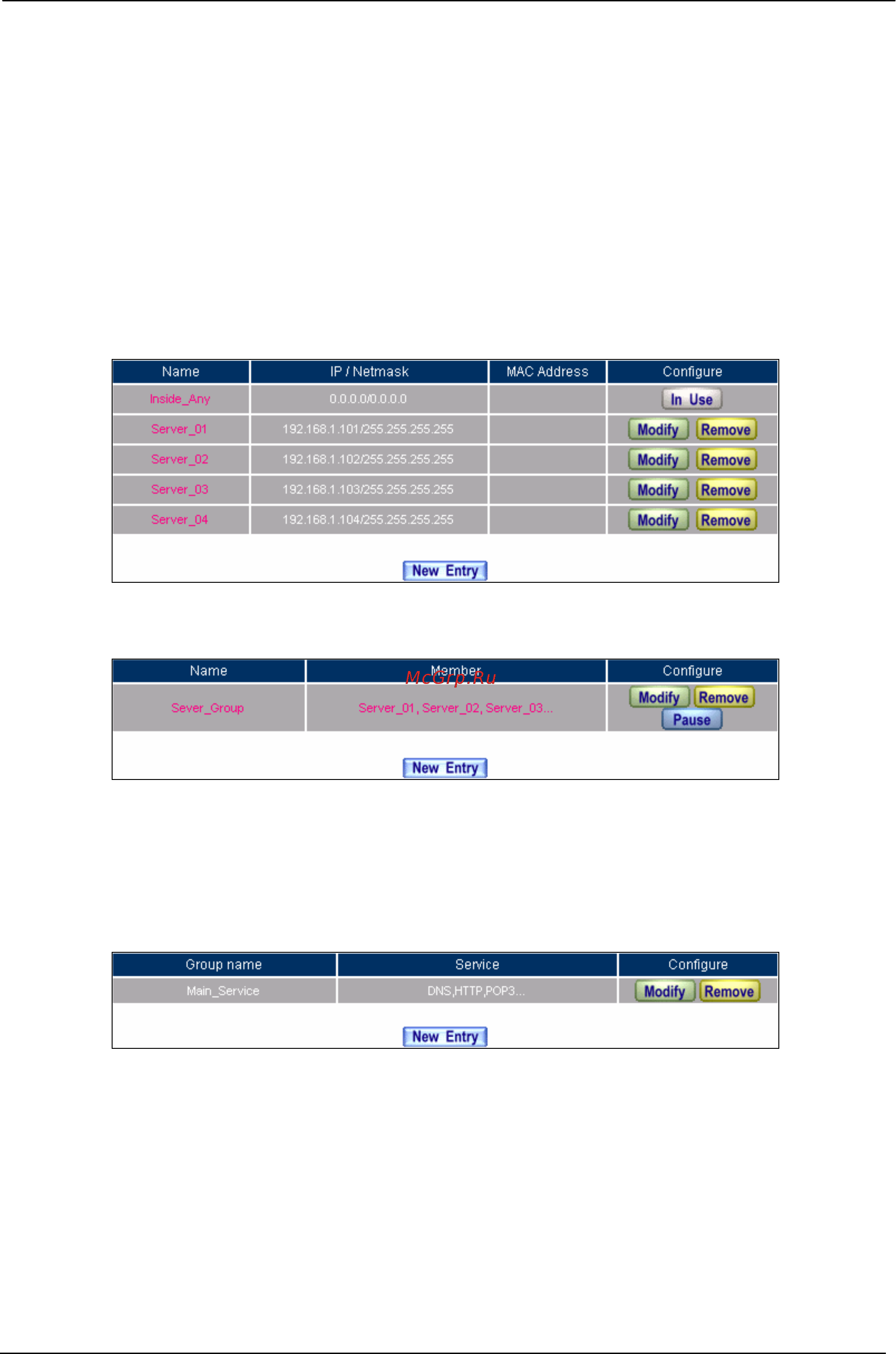

SG-500 VPN Security Gateway User’s Manual
- 118 -
Make several servers that provide several same services, to provide service
through policy by Virtual Server. (Take HTTP, POP3, SMTP, and DNS Group
for example)
STEP 1﹒Setting several servers that provide several services in LAN network. Its network card’s
IP is 192.168.1.101, 192.168.1.102, 192.168.1.103, 192.168.1.104 and the DNS setting
is External DNS server.
STEP 2﹒Enter the following in LAN and LAN Group of Address function.
Mapped IP Setting of Virtual Server in Address
Group Setting of Virtual Server in Address
STEP 3﹒Group the service of server in Custom of Service. Add a Service Group for server to
send e-mail at the same time.
Add New Service Group
