SG-500 VPN Security Gateway User’s Manual
- 119 -

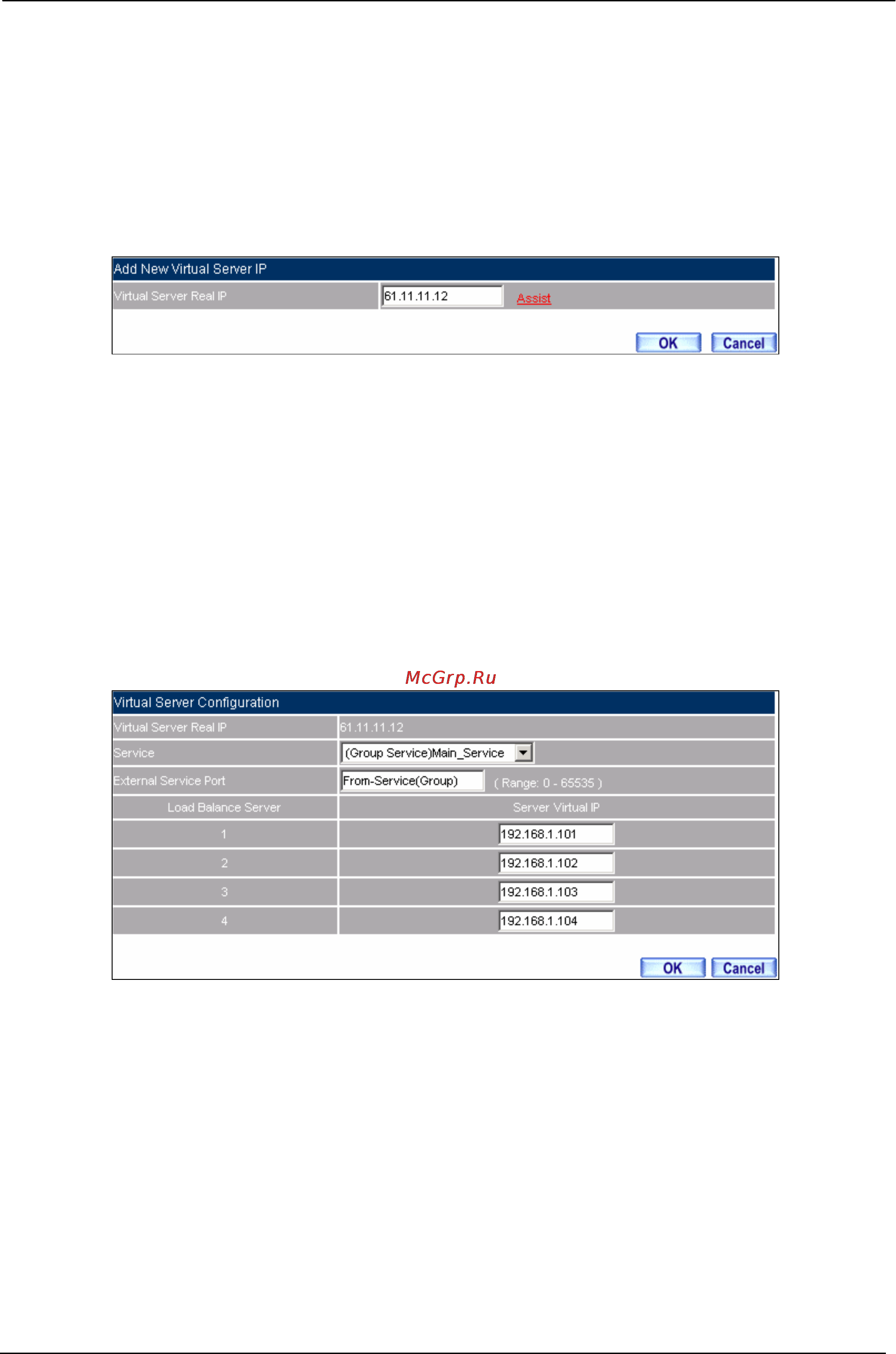

STEP 4﹒Enter the following data in Server1 of Virtual Server:
Click the button next to Virtual Server Real IP (“click here to configure ”) in
Server1
Virtual Server Real IP: Enter 61.11.11.12 (click Assist for assistance)
Click OK
Virtual Server Real IP Setting
Click New Entry
Service: Select (Group Service) Main_Service
External Service Port: From-Service (Group)
Enter the server IP in Load Balance Server
Click OK
Complete the setting of Virtual Server
Virtual Server Configuration Web UI
