SG-500 VPN Security Gateway User’s Manual

- 102 -

4.16 Download

Restrict the Internal Users to access to video, audio, and some specific sub-name

file from http or ftp protocol directly

STEP 1﹒Enter the following settings in Download of Content Blocking function:

 Select All Types Blocking

 Click OK

 Complete the setting of Download Blocking.

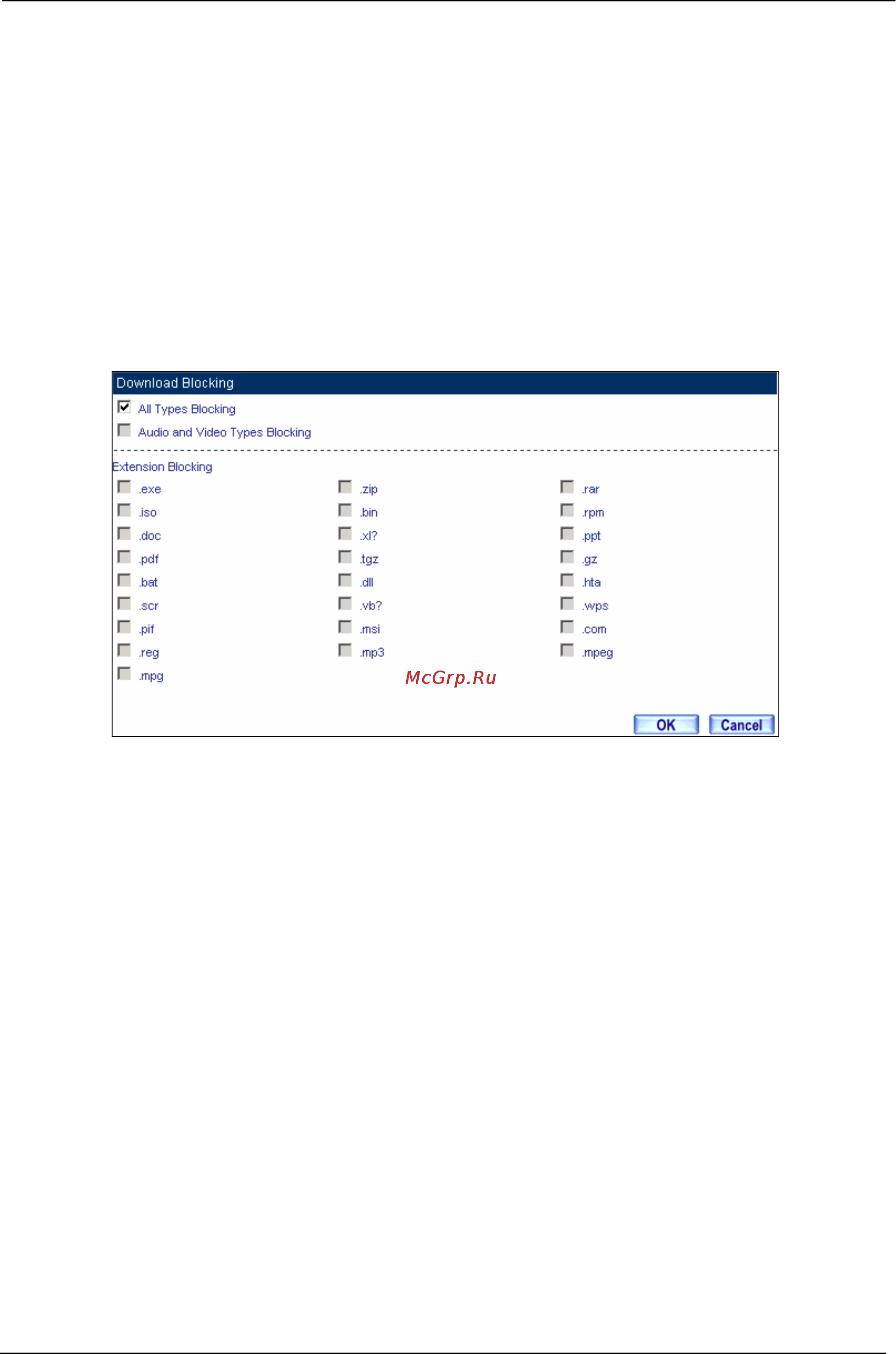

Download Blocking Web UI
