SG-500 VPN Security Gateway User’s Manual

- 250 -

6.1 Settings

Setting Web VPN / SSL VPN Connection between External Client and SG-500

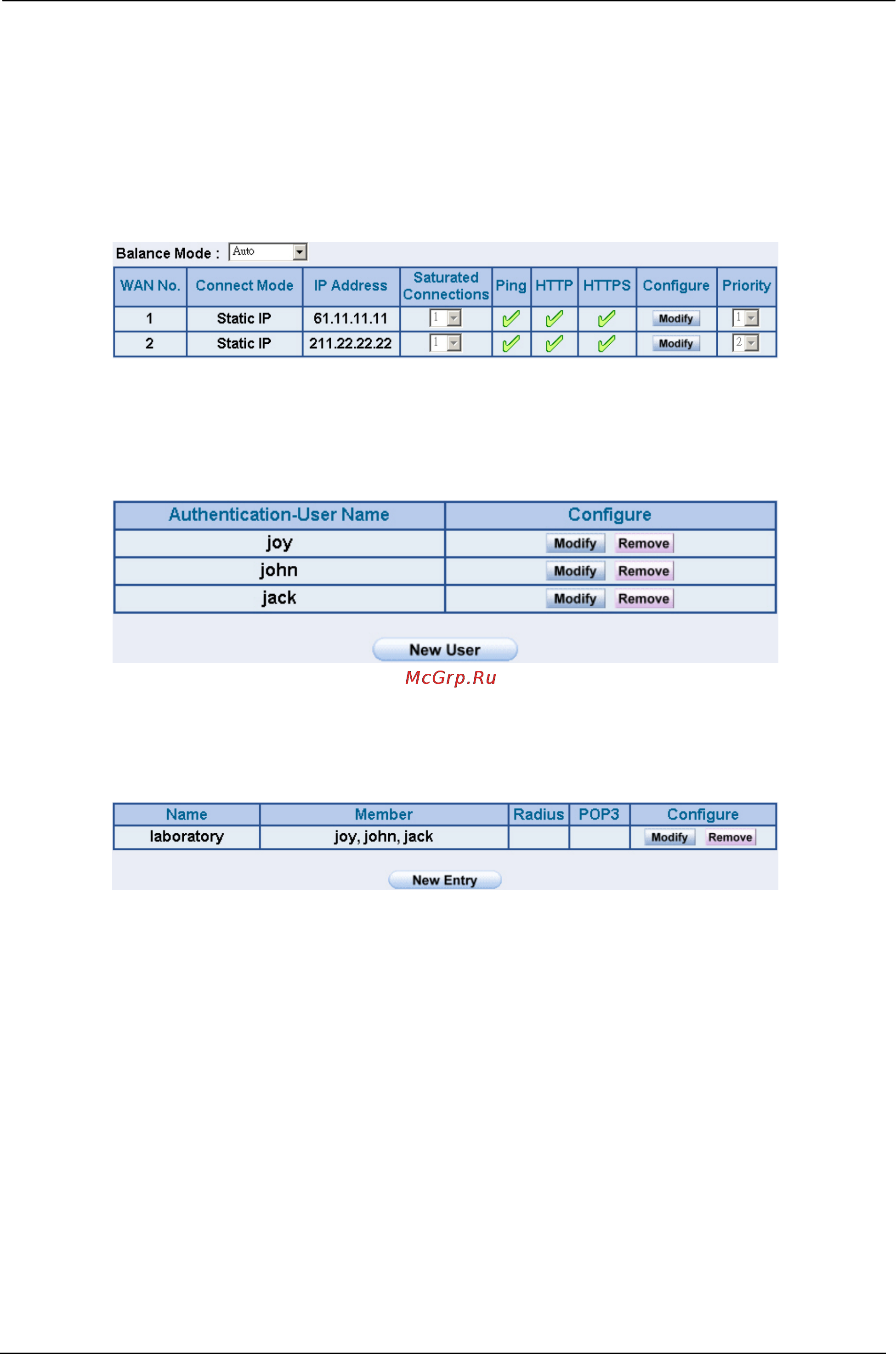

STEP 1. Enable HTTPS in WAN of Interface function:

WAN Interface Setting

STEP 2. Enter the following setting in Auth User of Authentication:

Auth User Setting

STEP 3. Enter the following setting in Auth Group of Authentication:

Auth Group Setting
