Planet SG-500 [22/319] System settings exporting

SG-500 VPN Security Gateway User’s Manual

- 17 -

System Settings- Exporting

STEP 1﹒In System Setting Web UI, click on button next to Export System Settings to Client.

STEP 2﹒When the File Download pop-up window appears, choose the destination place where to

save the exported file and click on Save. The setting value of SG-500 will copy to the

appointed site instantly.

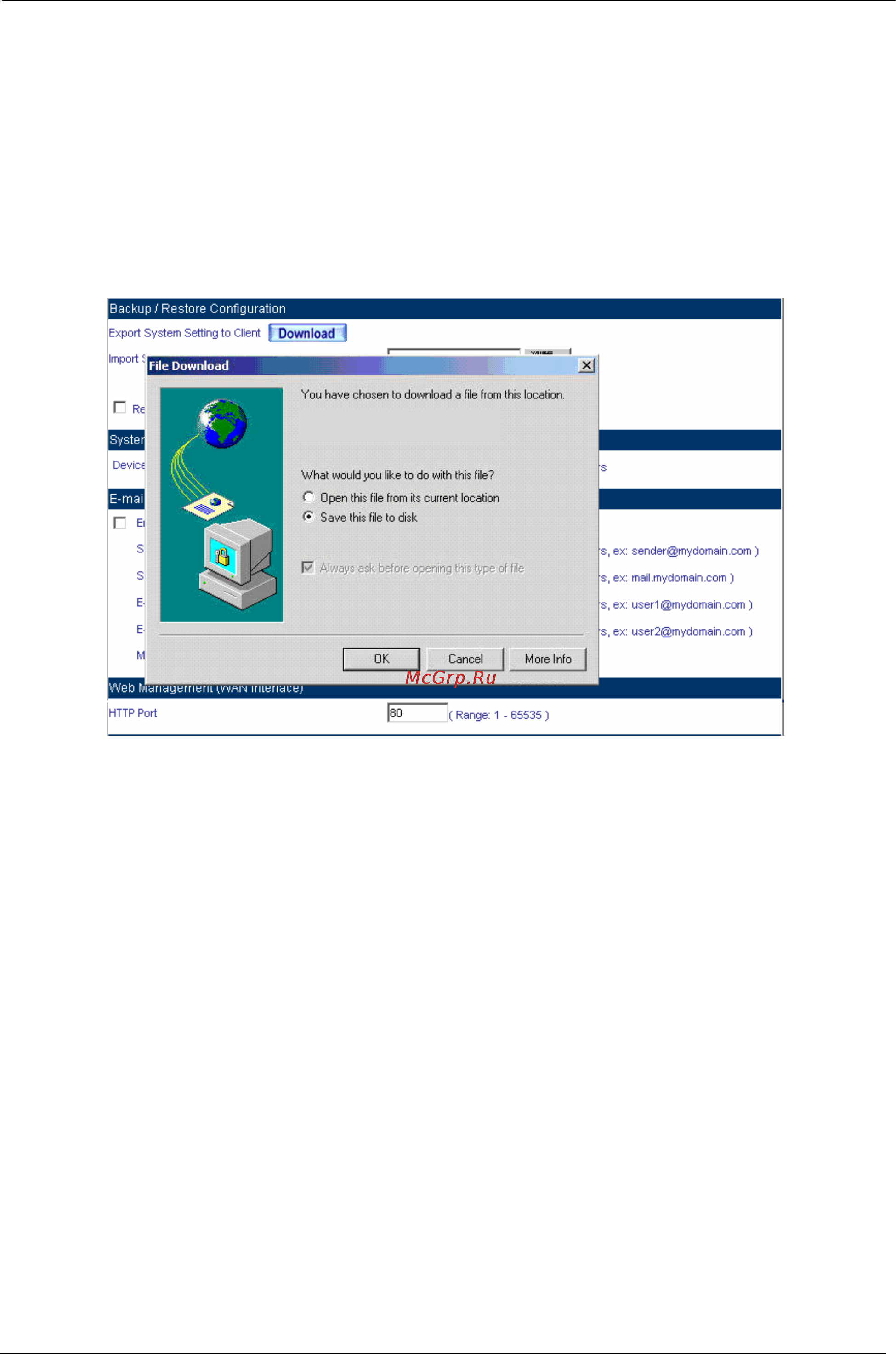

Select the Destination Place to Save the Exported File
