Planet SG-500 [244/319] The external user control the internal pc through remote control software take pc anywhere for example

SG-500 VPN Security Gateway User’s Manual

- 239 -

The external user control the internal PC through remote control software (Take

PC-Anywhere for example)

STEP 1﹒Set up a Internal PC controlled by external user, and Internal PC’s IP Address is

192.168.1.2

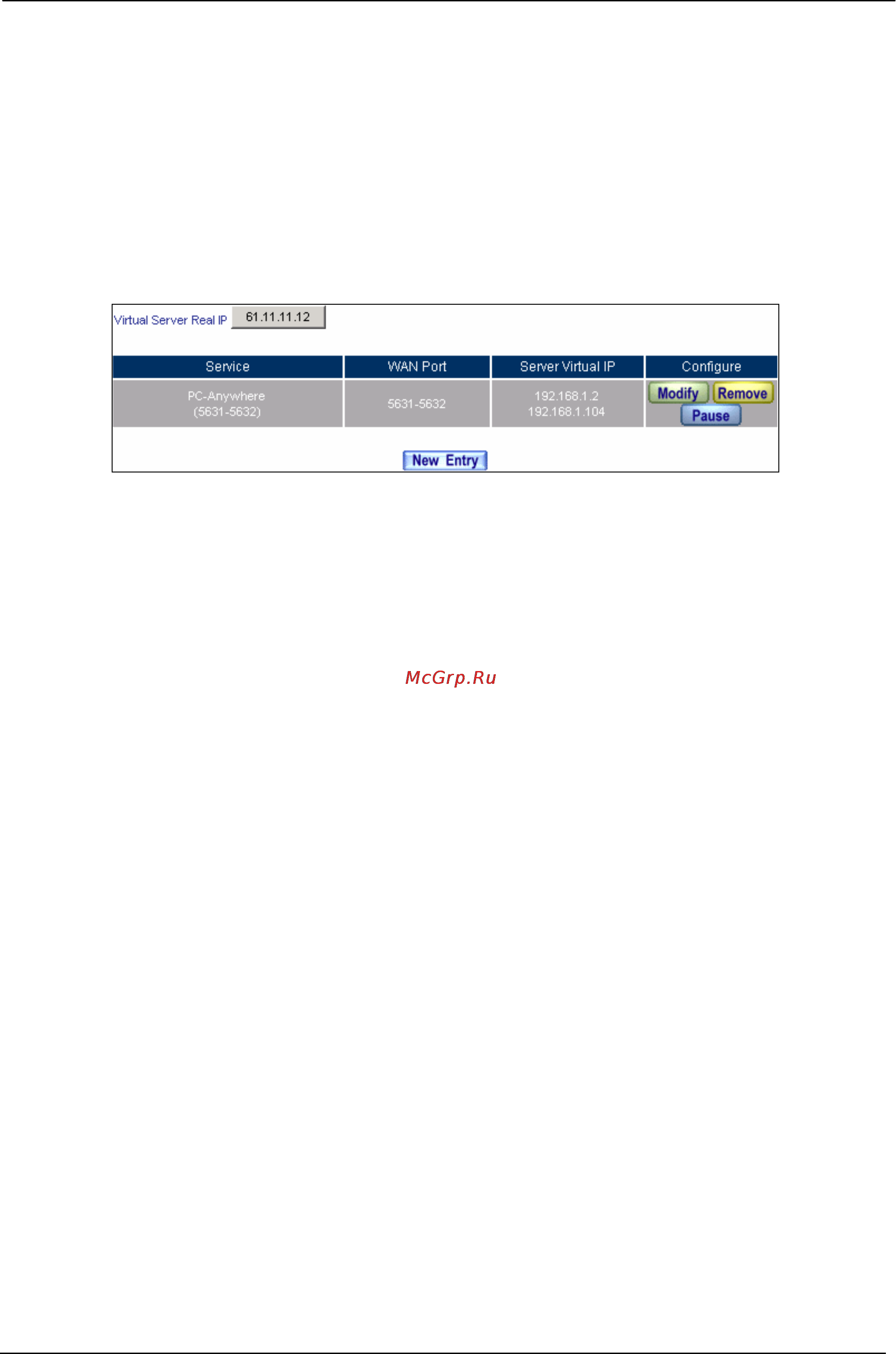

STEP 2﹒Enter the following setting in Virtual Server1 of Virtual Server function.

Setting Virtual Server
