Planet SG-500 [144/319] Example

SG-500 VPN Security Gateway User’s Manual

- 139 -

Example.2

The way to set the SG-500 appliance IPSec VPN connection in Windows 2000.

The Deployment

Company A : Use the SG-500

WAN IP: 61.11.11.11

LAN IP: 192.168.10.X

Company B : The PC with Windows 2000 inside.

WAN IP: 211.22.22.22

We use the SG-500 and Windows 2000 VPN-IPsec to be the platform. On the other hand, we assume that B

Company 211.22.22.22 want to build the VPN to A Company 192.168.10.100, in order to download the shared

document.

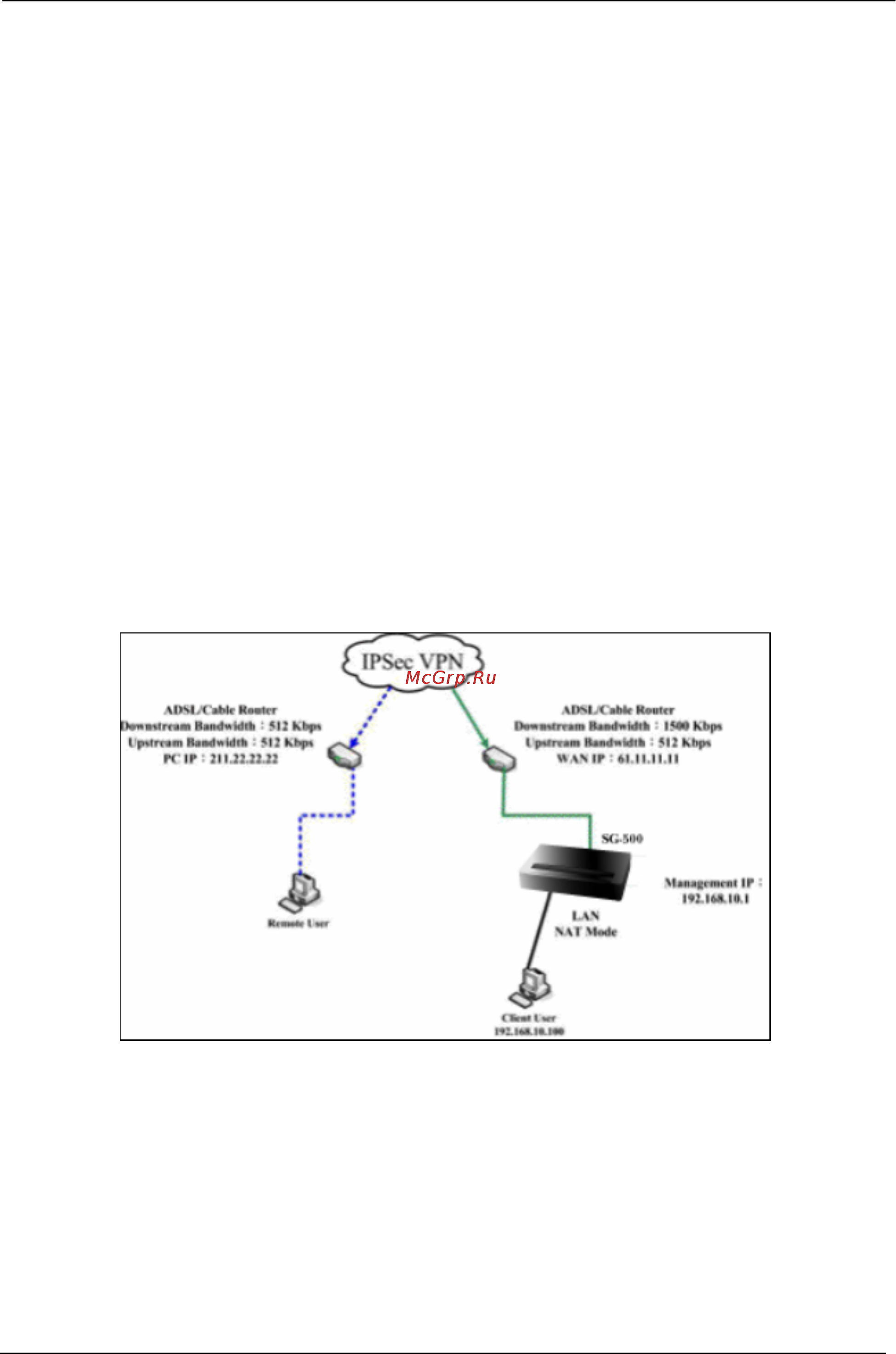

TEST Environment

The SG-500 and Windows 2000 IPSec VPN deployment
