SG-500 VPN Security Gateway User’s Manual

- 138 -

STEP 23 . Enter the following setting in Incoming Policy:

 Tunnel: Select IPSec_VPN_Tunnel.

 Click OK.

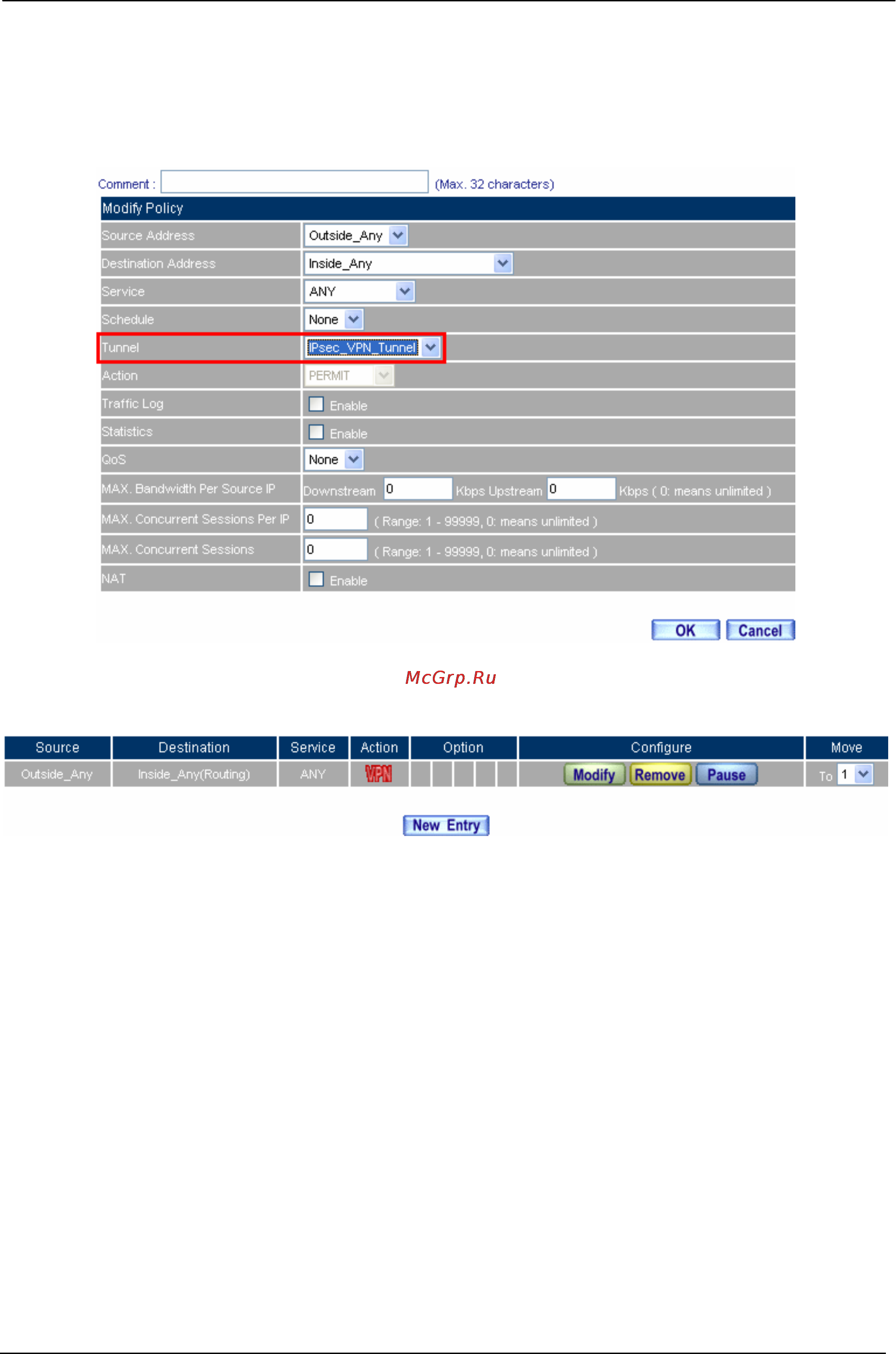

Setting the VPN Tunnel Incoming Policy

Complete the VPN Tunnel Incoming Policy Setting

STEP 24 . Complete IPSec VPN Connection.

IPSec VPN Connection Deployment
