Example.3

The way to set the IPSec VPN connection between two SG-500 appliances.

(Aggressive mode) (The IPSec algorithm, 3DES encryption, MD5 authentication).

The Deployment

Company A : WAN IP 61.11.11.11

LAN IP 192.168.10.X

Company B : WAN IP 211.22.22.22

LAN IP 192.168.20.X

We use two SG-500 devices to be the platform. Assume that A Company 192.168.10.100 want to build the

VPN to B Company 192.168.20.100, in order to download the shared documents. (Aggressive mode)

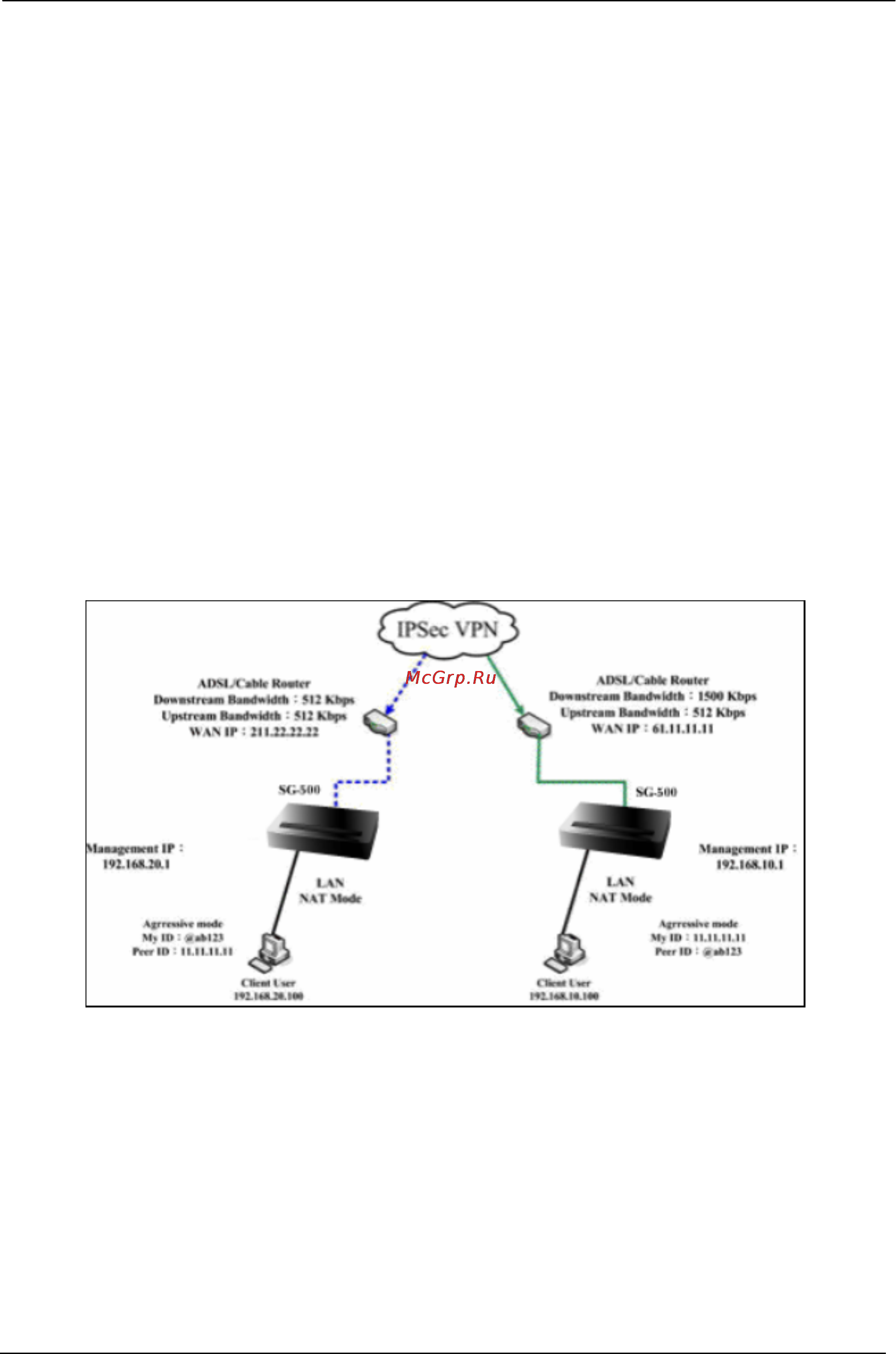

TEST Environment

The IPSec VPN aggressive mode deployment
