Planet SG-500 [24/319] Enabling e mail alert notification

SG-500 VPN Security Gateway User’s Manual

- 19 -

Restoring Factory Default Settings

STEP 1﹒Select Reset Factory Settings in SG-500 Configuration Web UI

STEP 2﹒Click OK at the bottom-right of the page to restore the factory settings.

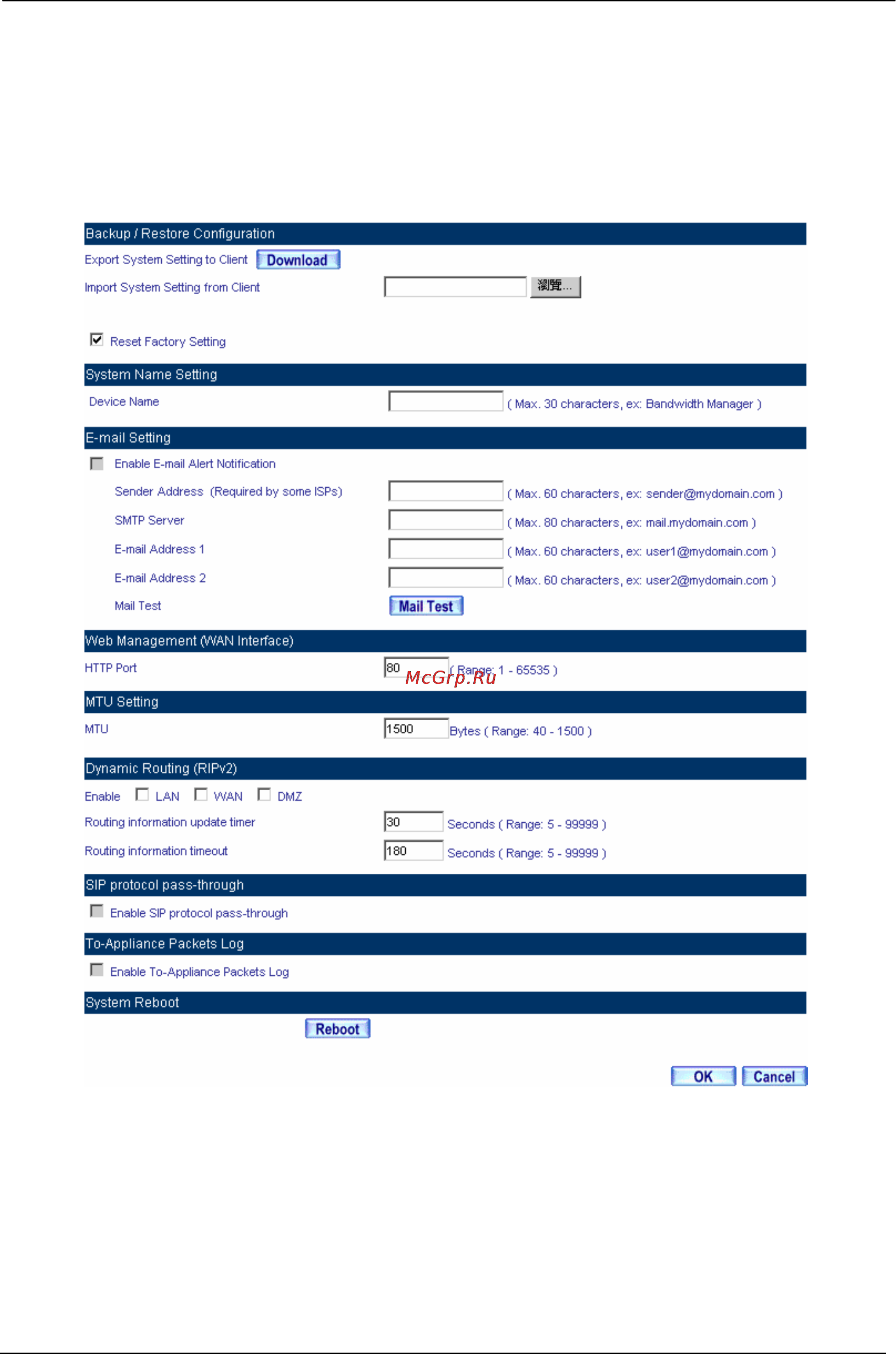

Reset Factory Settings

Enabling E-mail Alert Notification

STEP 1﹒Device Name: Enter the Device Name or use the default value.

STEP 2﹒Select Enable E-mail Alert Notification under E-Mail Settings.
