SG-500 VPN Security Gateway User’s Manual
- 20 -
STEP 3﹒Sender Address: Enter the Sender Address. (Required by some ISPs.)
STEP 4﹒SMTP Server IP: Enter SMTP server’s IP address.
STEP 5﹒E-Mail Address 1: Enter the e-mail address of the first user to be notified.
STEP 6﹒E-Mail Address 2: Enter the e-mail address of the second user to be notified. (Optional)
STEP 7﹒Click OK on the bottom-right of the screen to enable E-mail Alert Notification.

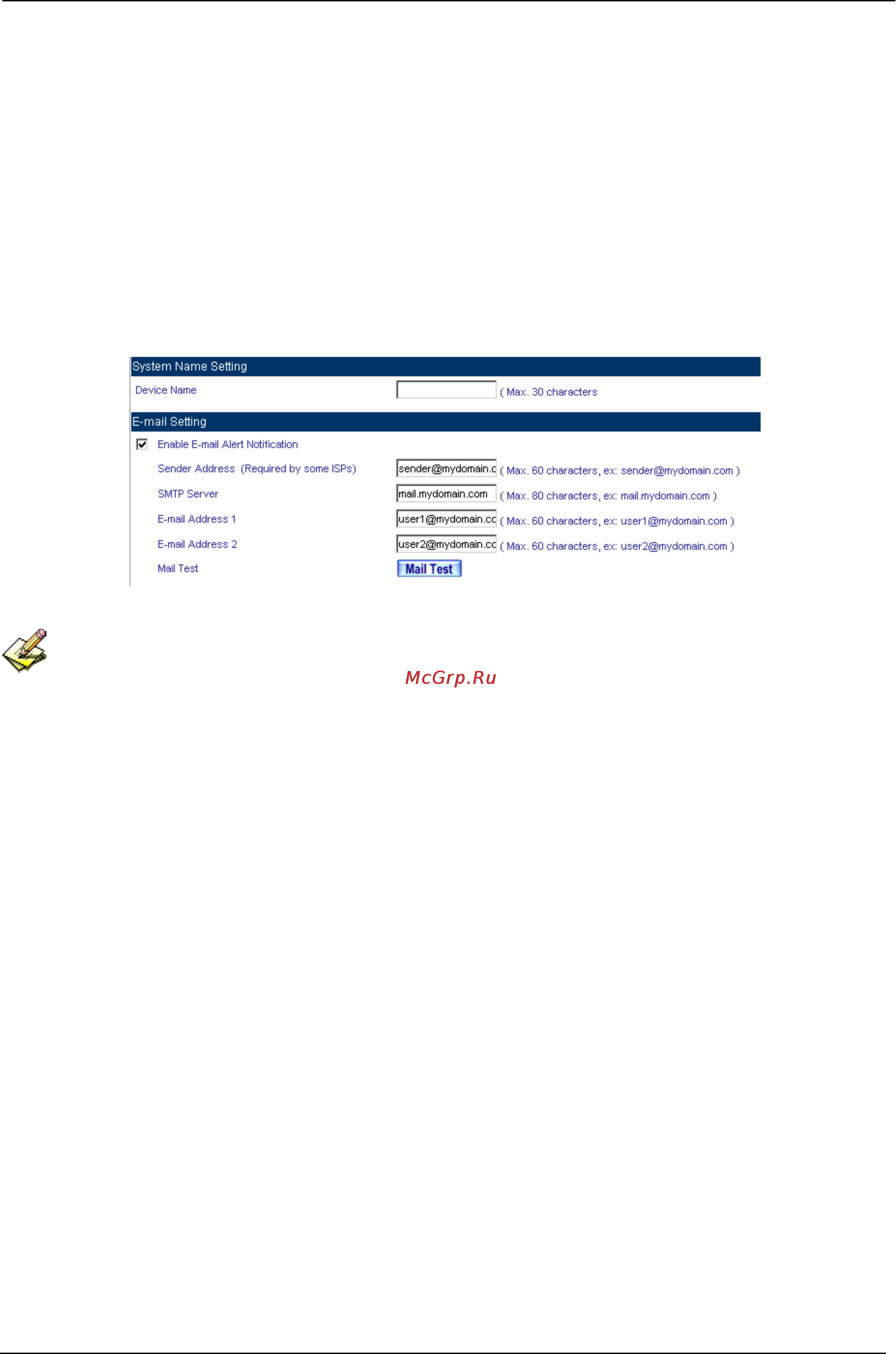

Enable E-mail Alert Notification
Click on Mail Test to test if E-mail Address 1 and E-mail Address 2 can receive the Alert Notification
correctly.
