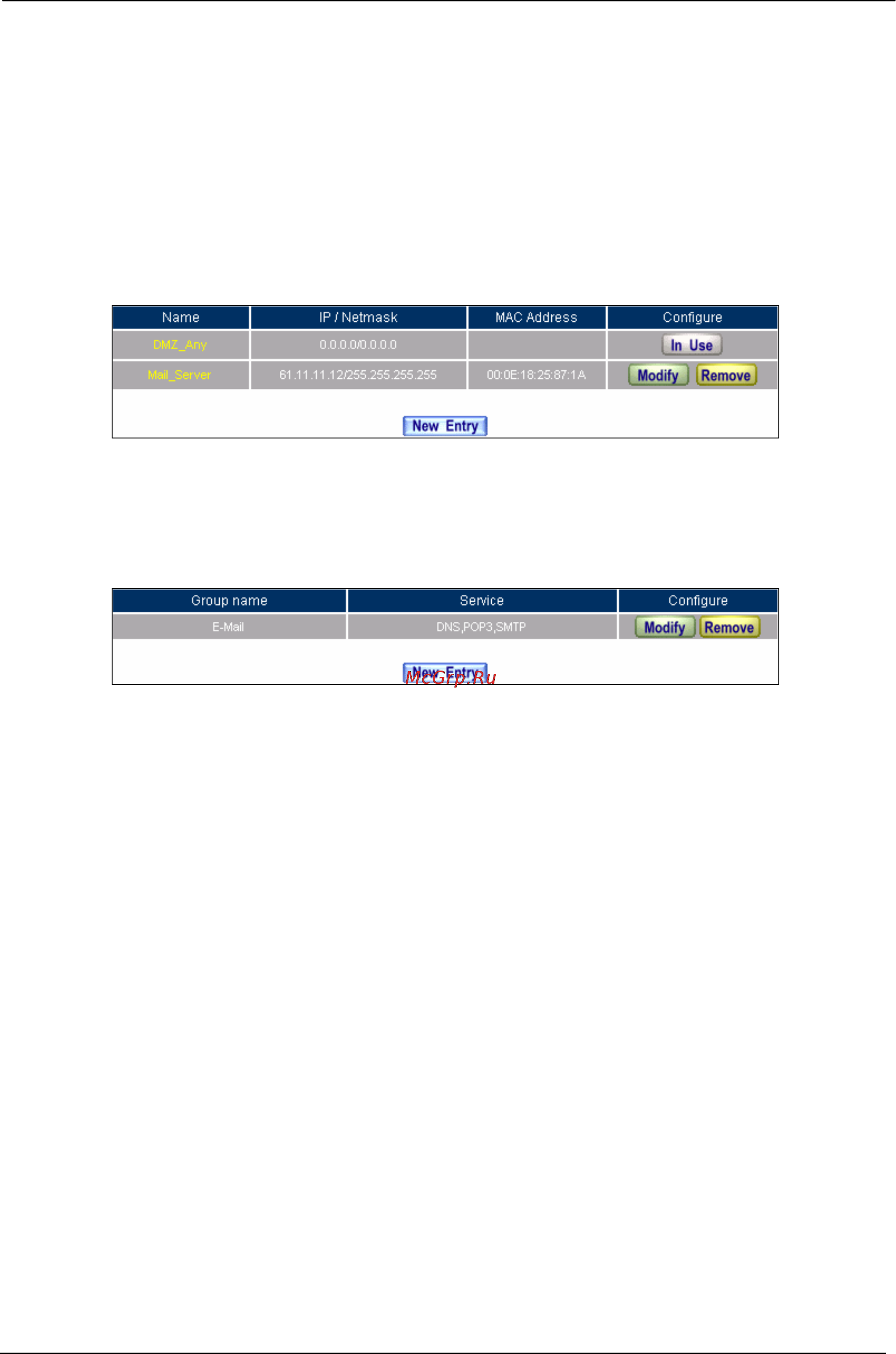

SG-500 VPN Security Gateway User’s Manual
- 243 -
Set a Mail Server to allow the internal and external users to receive and send
e-mail under DMZ Transparent Mode
STEP 1﹒Set a Mail Server in DMZ and set its network card’s IP Address as 61.11.11.12. The
DNS setting is external DNS Server.
STEP 2﹒Add the following setting in DMZ of Address function.
The Mail Server’s IP Address Corresponds to Name Setting in Address Book of Mail Server
STEP 3﹒Add the following setting in Group of Service function.
Setting up a Service Group that has POP3, SMTP, and DNS
