SG-500 VPN Security Gateway User’s Manual

- 37 -

2.14 Language

Select the Language version (English Version, Traditional Chinese Version, or Simplified

Chinese Version) and click OK.

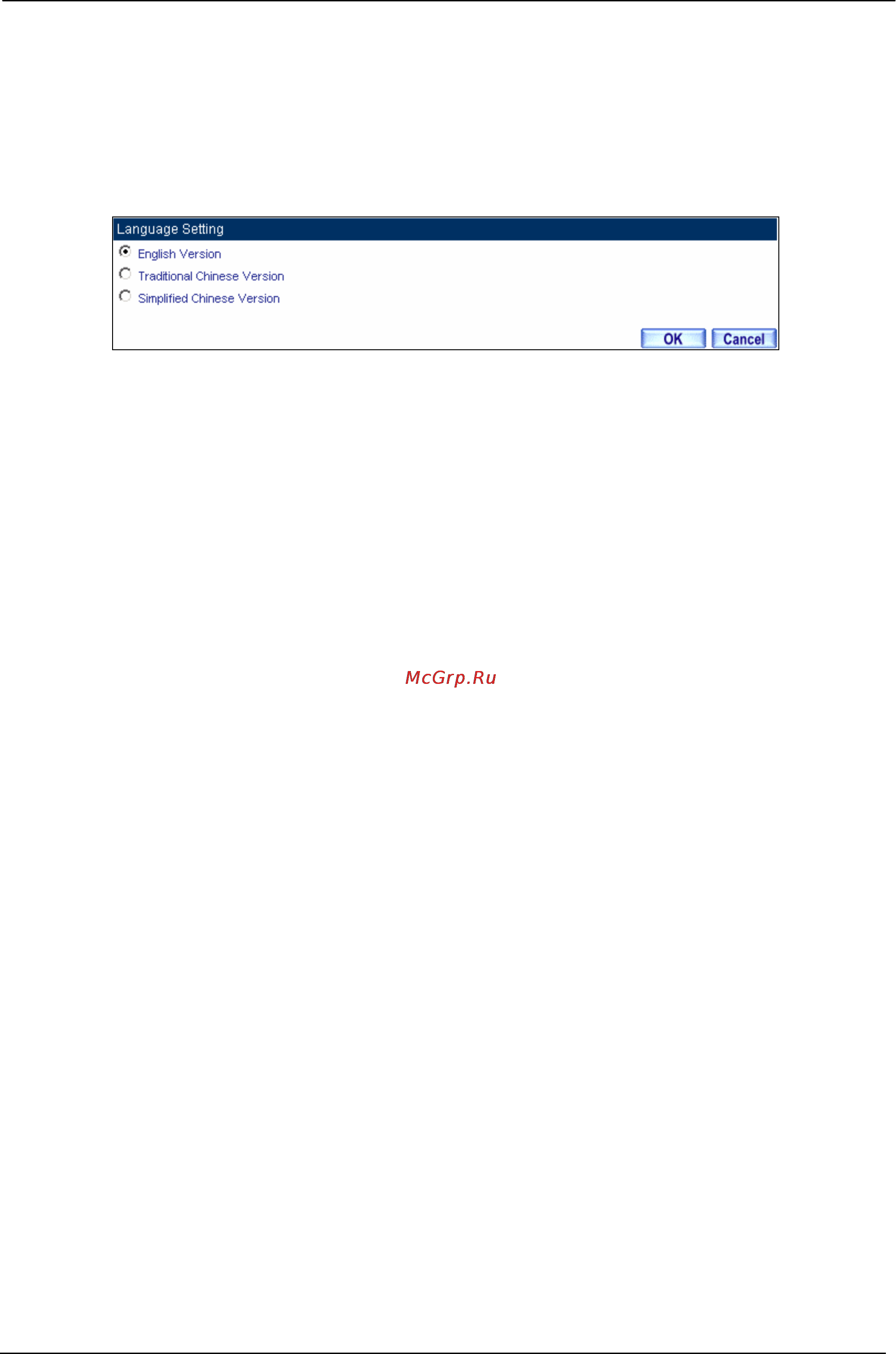

Language Setting Web UI
