SG-500 VPN Security Gateway User’s Manual
- 22 -
2.8 Date/Time
STEP 1﹒Select Enable synchronize with an Internet time Server.
STEP 2﹒Click the down arrow to select the offset time from GMT.
STEP 3﹒Enter the Server IP / Name with which you want to synchronize.
STEP 4﹒Set the interval time to synchronize with outside servers.

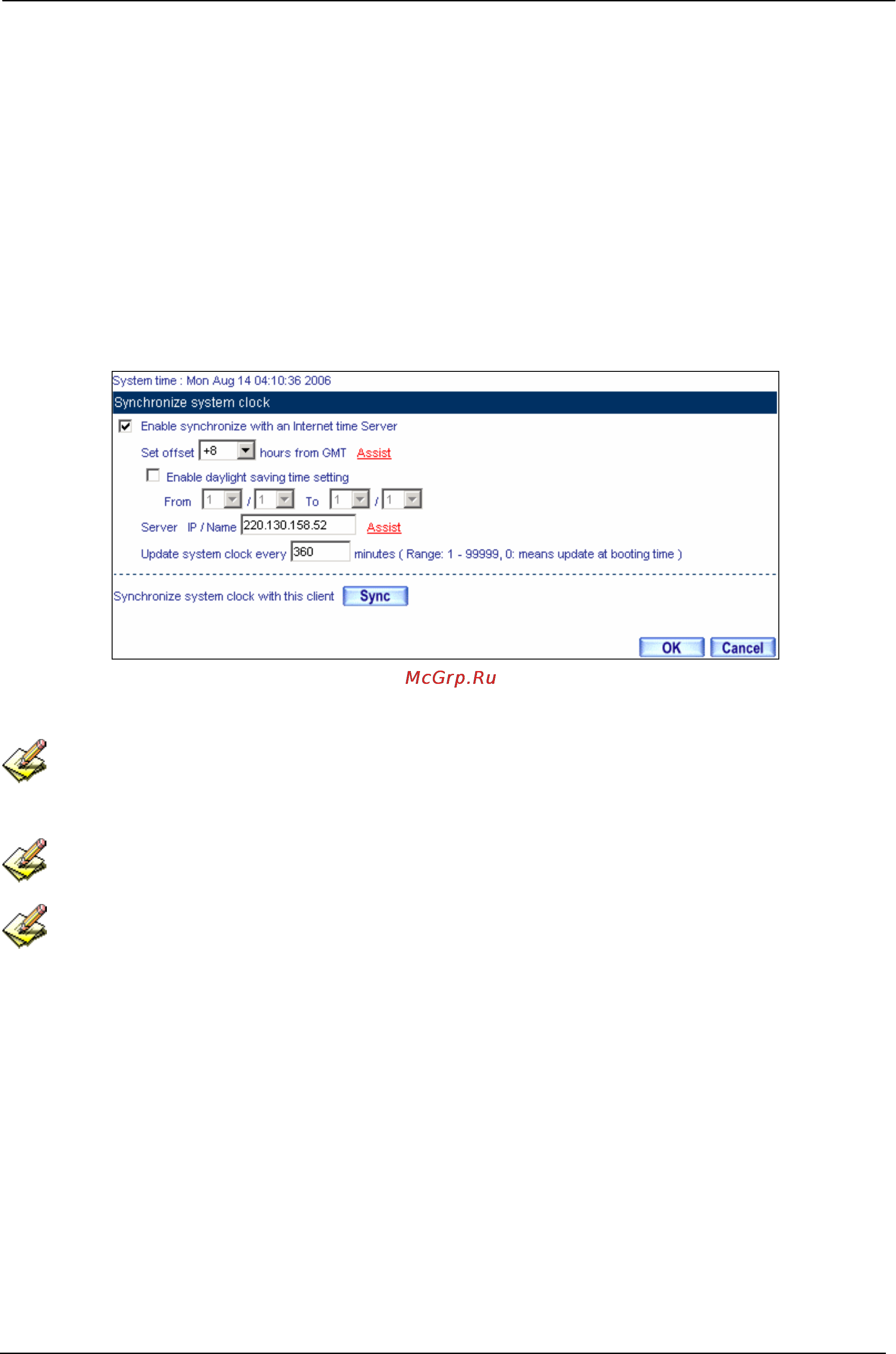

System Time Setting
Click on the Sync button and then the SG-500’s date and time will be synchronized to the
Administrator’s PC
The value of Set Offset From GMT and Server IP / Name can be looking for from Assist.
If the local area executes the daylight saving time, then enable the daylight saving time setting.
