SG-500 VPN Security Gateway User’s Manual

- 21 -

Reboot SG-500

STEP 1﹒Reboot SG-500：Click Reboot button next to Reboot SG-500 Appliance.

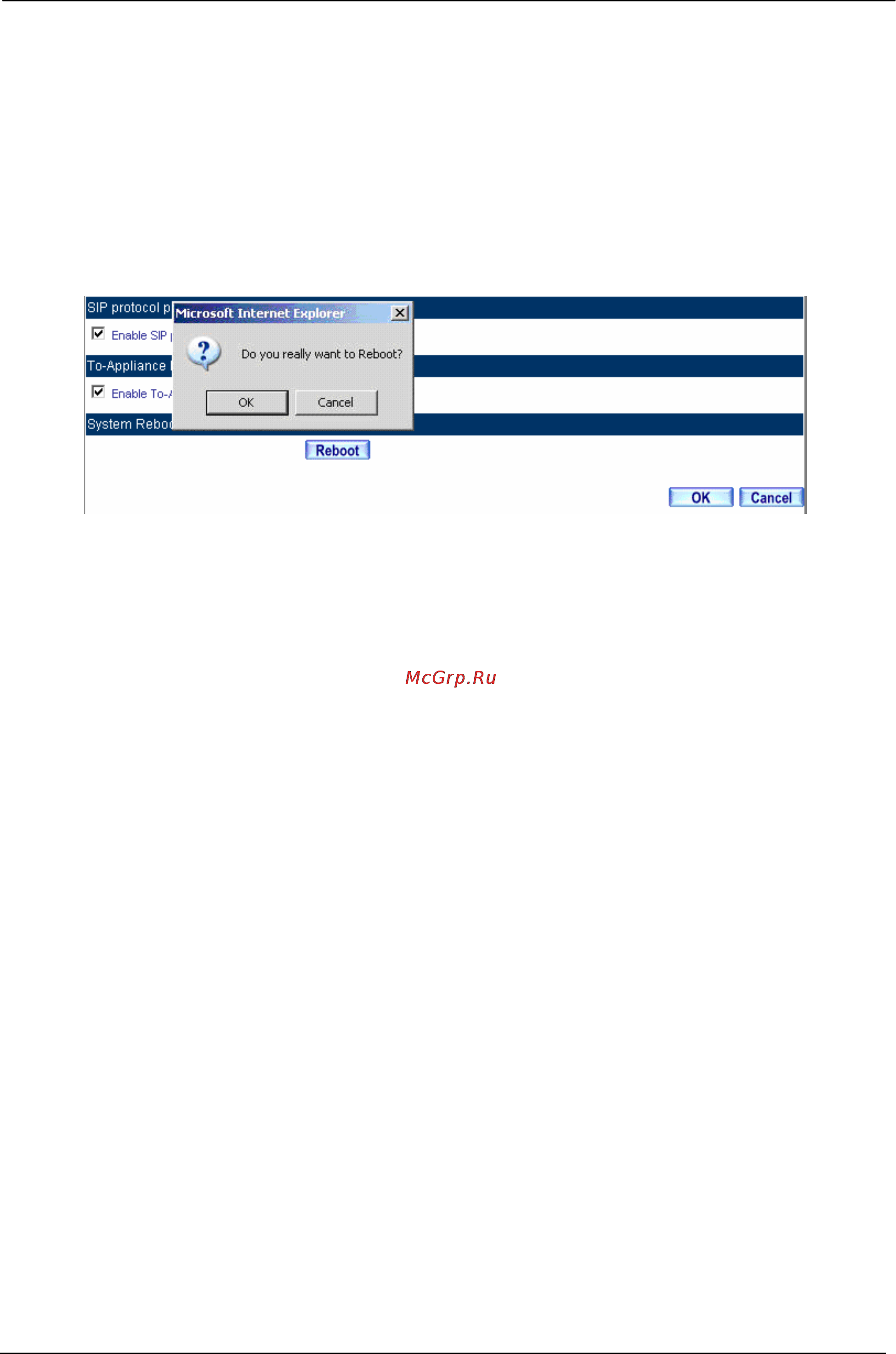

STEP 2﹒A confirmation pop-up page will appear.

STEP 3﹒Follow the confirmation pop-up page; click OK to restart SG-500.

Reboot SG-500
