SG-500 VPN Security Gateway User’s Manual
- 108 -
4.18 Example
Make a single server that provides several services such as FTP, Web, and Mail,
to provide service by policy
STEP 1﹒Setting a server that provide several services in LAN, and set up the network card’s IP as
192.168.1.100. DNS is External DNS Server.
STEP 2﹒Enter the following setting in LAN of Address function.

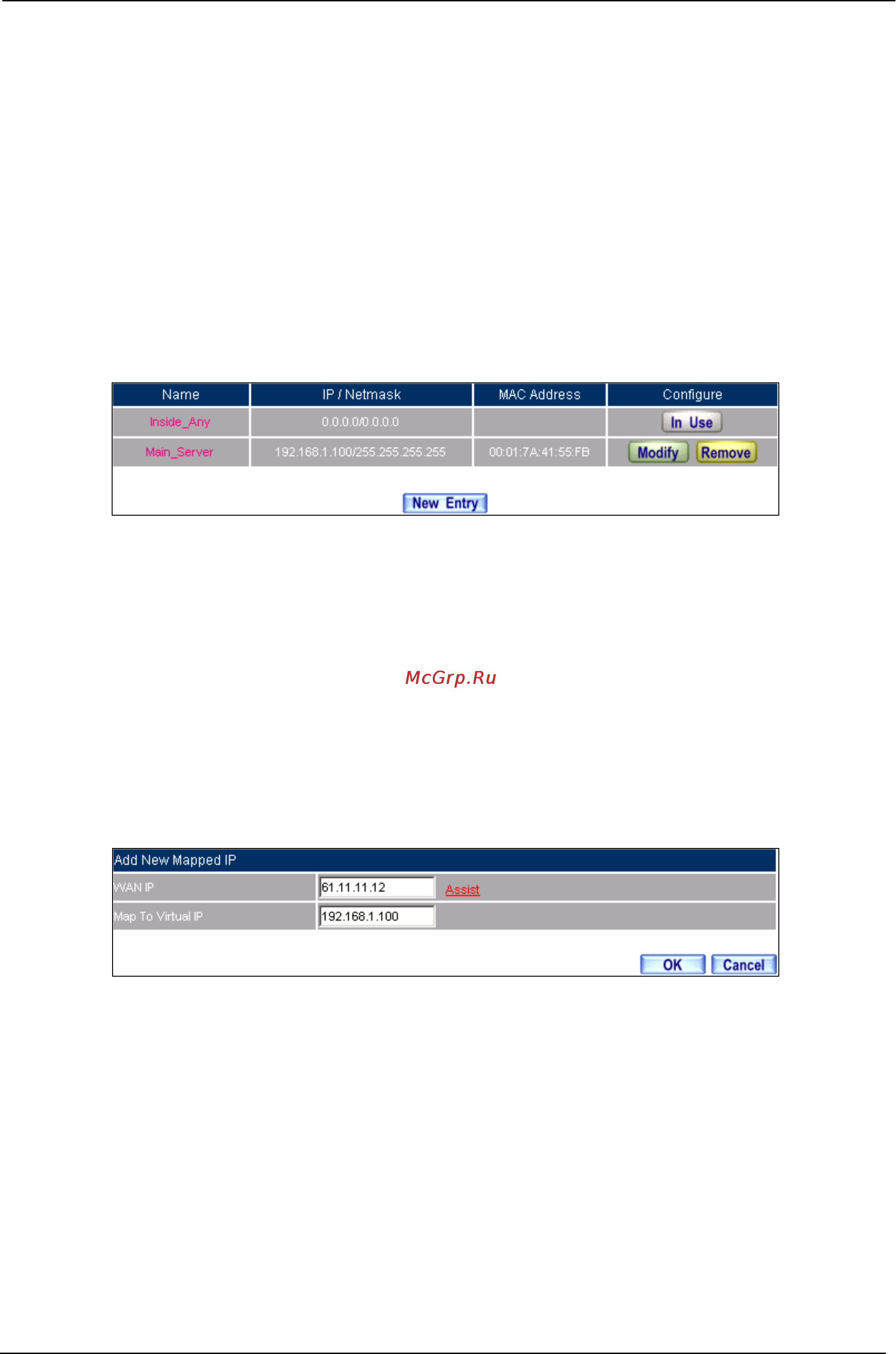

Mapped IP Settings of Server in Address
STEP 3﹒Enter the following data in Mapped IP of Virtual Server function:
Click New Entry
WAN IP: Enter 61.11.11.12 (click Assist for assistance)
Map to Virtual IP: Enter 192.168.1.100
Click OK
Complete the setting of adding new mapped IP
Mapped IP Setting Web UI
