SG-500 VPN Security Gateway User’s Manual

- 109 -

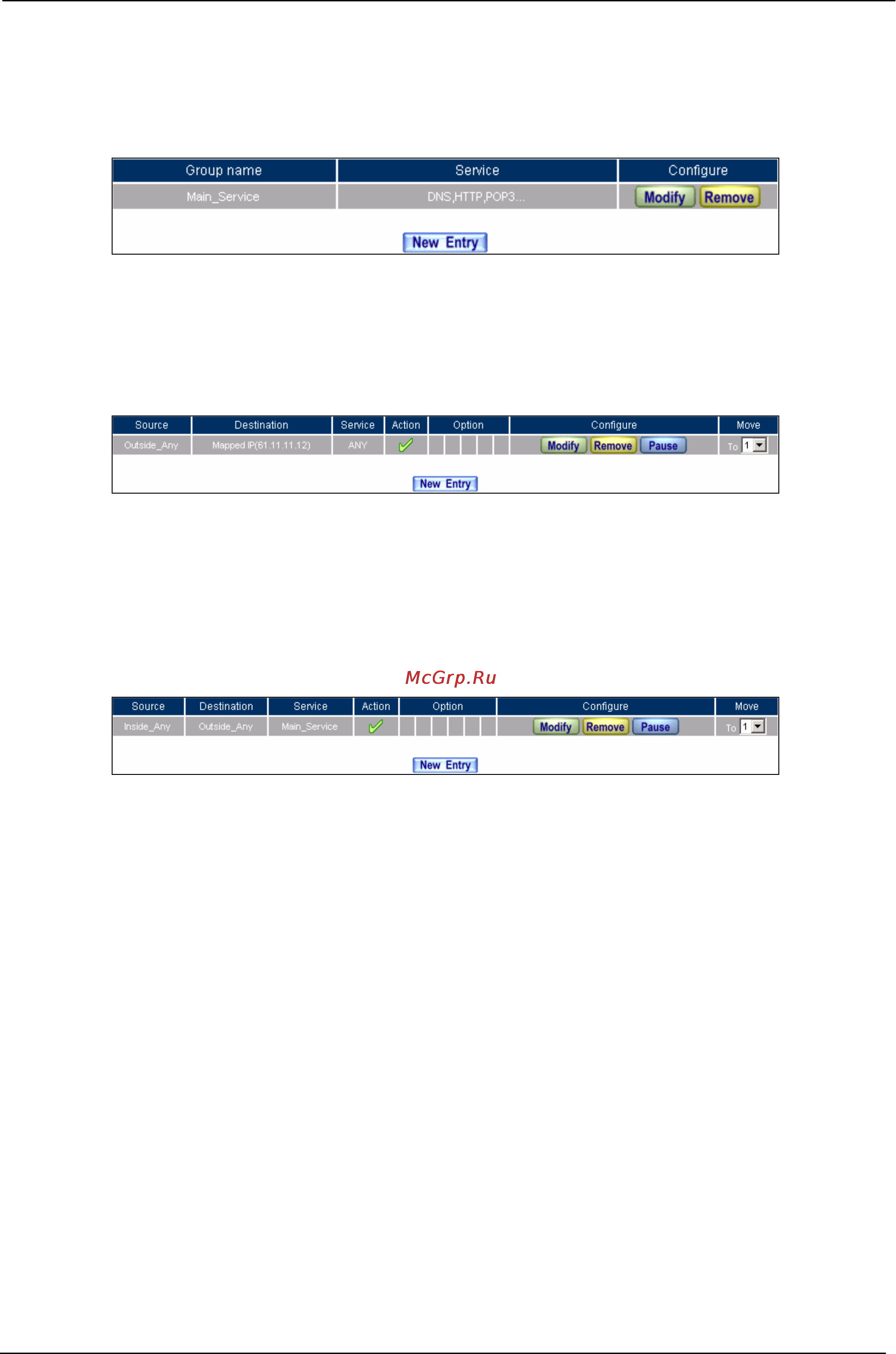

STEP 4﹒Group the services (DNS, FTP, HTTP, POP3, SMTP…) that provided and used by server

in Service function. And add a new service group for server to send mails at the same

time.

Service Setting

STEP 5﹒Add a policy that includes settings of STEP3, 4 in Incoming Policy.

Complete the Incoming Policy

STEP 6﹒Add a policy that includes STEP2, 4 in Outgoing Policy. It makes the server to send

e-mail to external mail server by mail service.

Complete the Outgoing Policy
