Planet SG-500 [58/319] Example

SG-500 VPN Security Gateway User’s Manual

- 53 -

4.2 Example

Under DHCP situation, assign the specific IP to static users and restrict them to

access FTP net service only through policy

STEP 1﹒Select LAN in Address and enter the following settings:

 Click New Entry button

 Name: Enter Rayearth

 IP Address: Enter 192.168.3.2

 Netmask: Enter 255.255.255.255

 MAC Address : Enter the user’s MAC Address（00:B0:18:25:F5:89）

 Select Get static IP address from DHCP Server

 Click OK

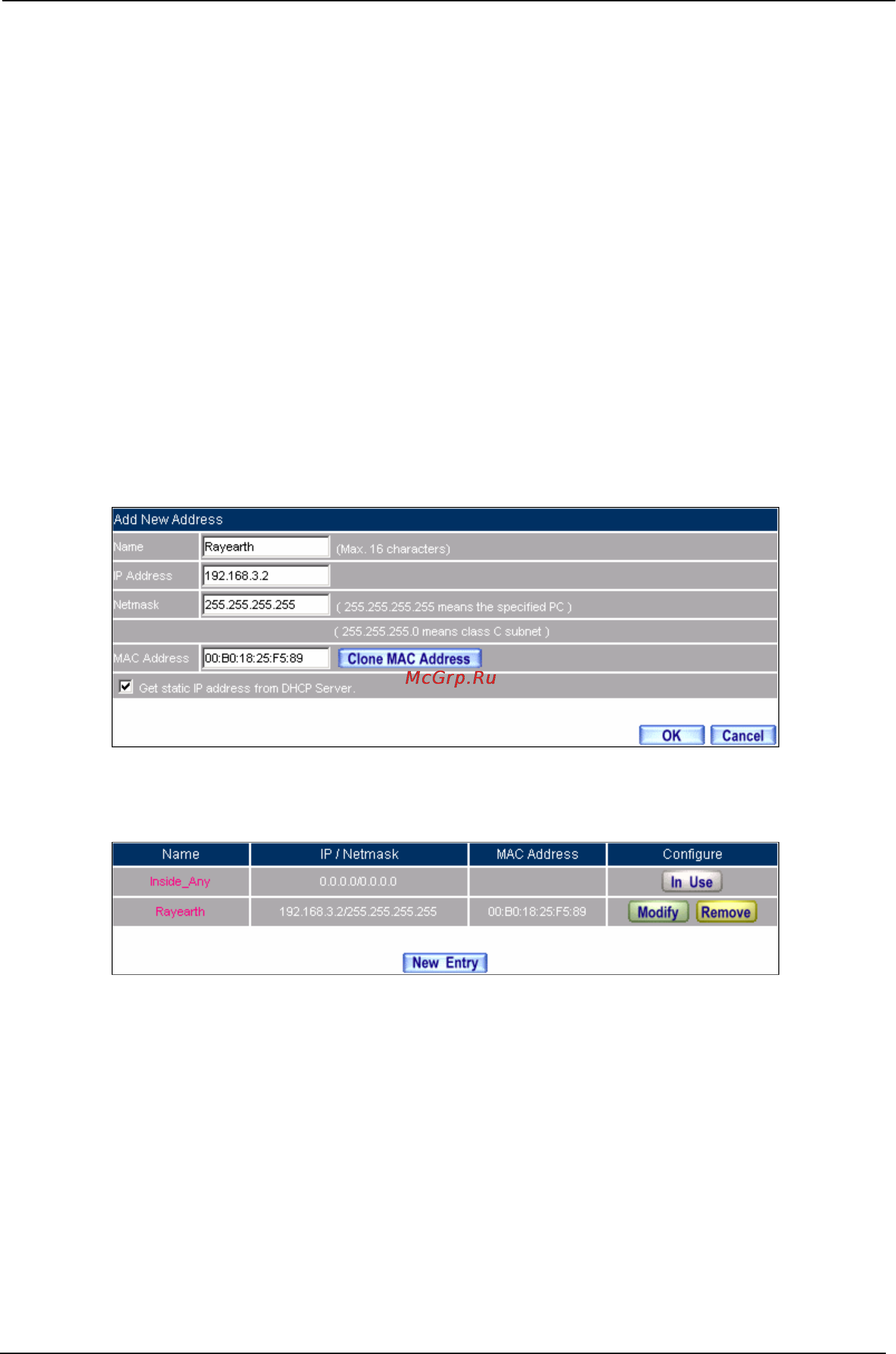

Setting LAN Address Book Web UI

Complete the Setting of LAN
