Planet SG-500 [283/319] Event log

SG-500 VPN Security Gateway User’s Manual

- 278 -

8.3 Event Log

To record the detailed management events (such as Interface and event

description of SG-500) of the Administrator

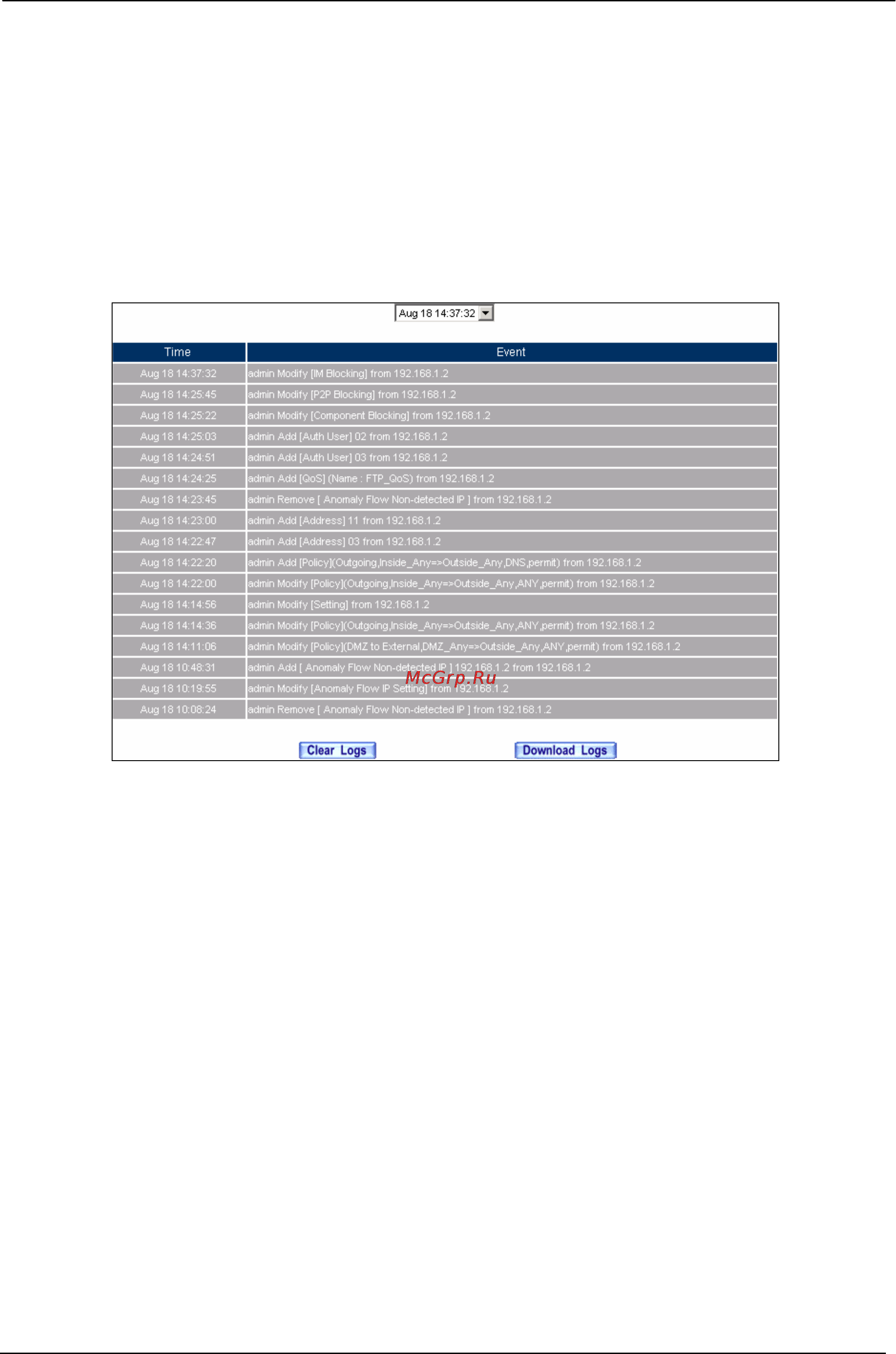

STEP 1﹒Click Event log of LOG. The management event records of the administrator will show

Event Log Web UI
