SG-500 VPN Security Gateway User’s Manual

- 277 -

STEP 6﹒ Click Clear Logs and click OK on the confirm Web UI. The records will be deleted

from the SG-500 instantly.

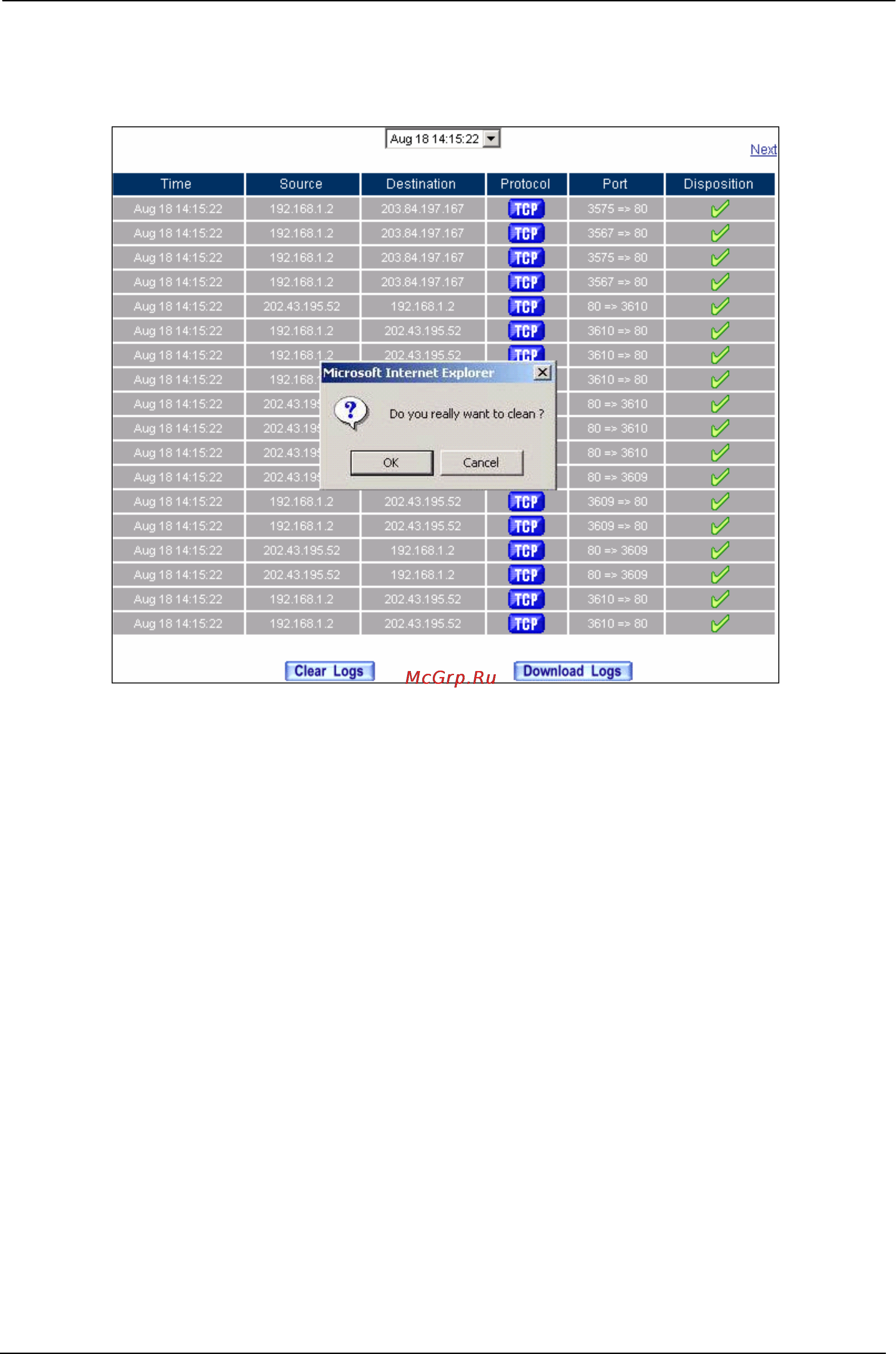

Clearing Traffic Log Records Web UI
