SG-500 VPN Security Gateway User’s Manual

- 276 -

STEP 5﹒ Click on Download Logs and select Save in File Download Web UI. And then choose

the place to save in PC and click OK; the records will be saved instantly.

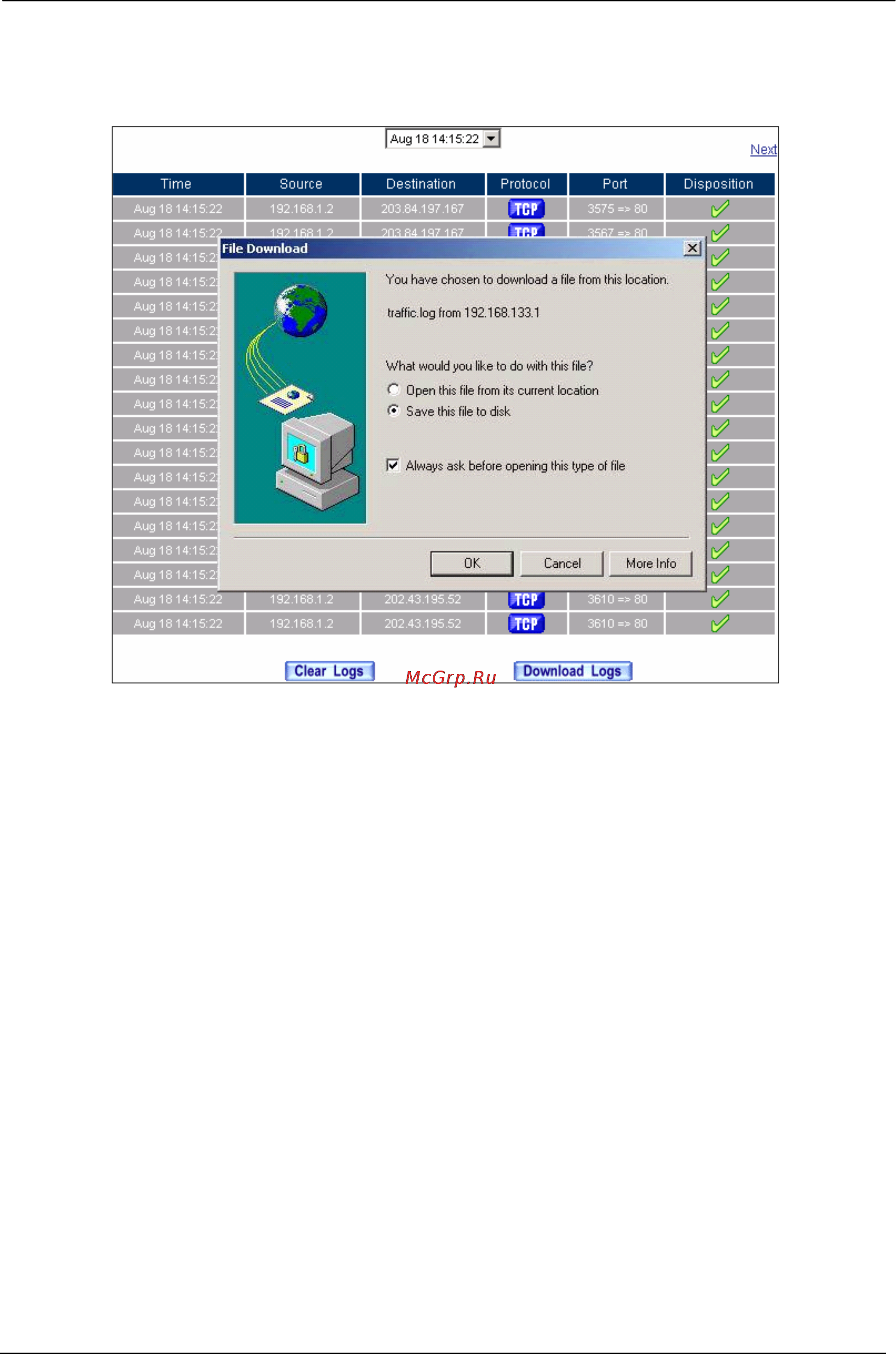

Download Traffic Log Records Web UI
