SG-500 VPN Security Gateway User’s Manual

- 275 -

STEP 4﹒Click on a specific IP of Source IP or Destination IP, it will prompt out a Web UI about

Protocol and Port of the IP.

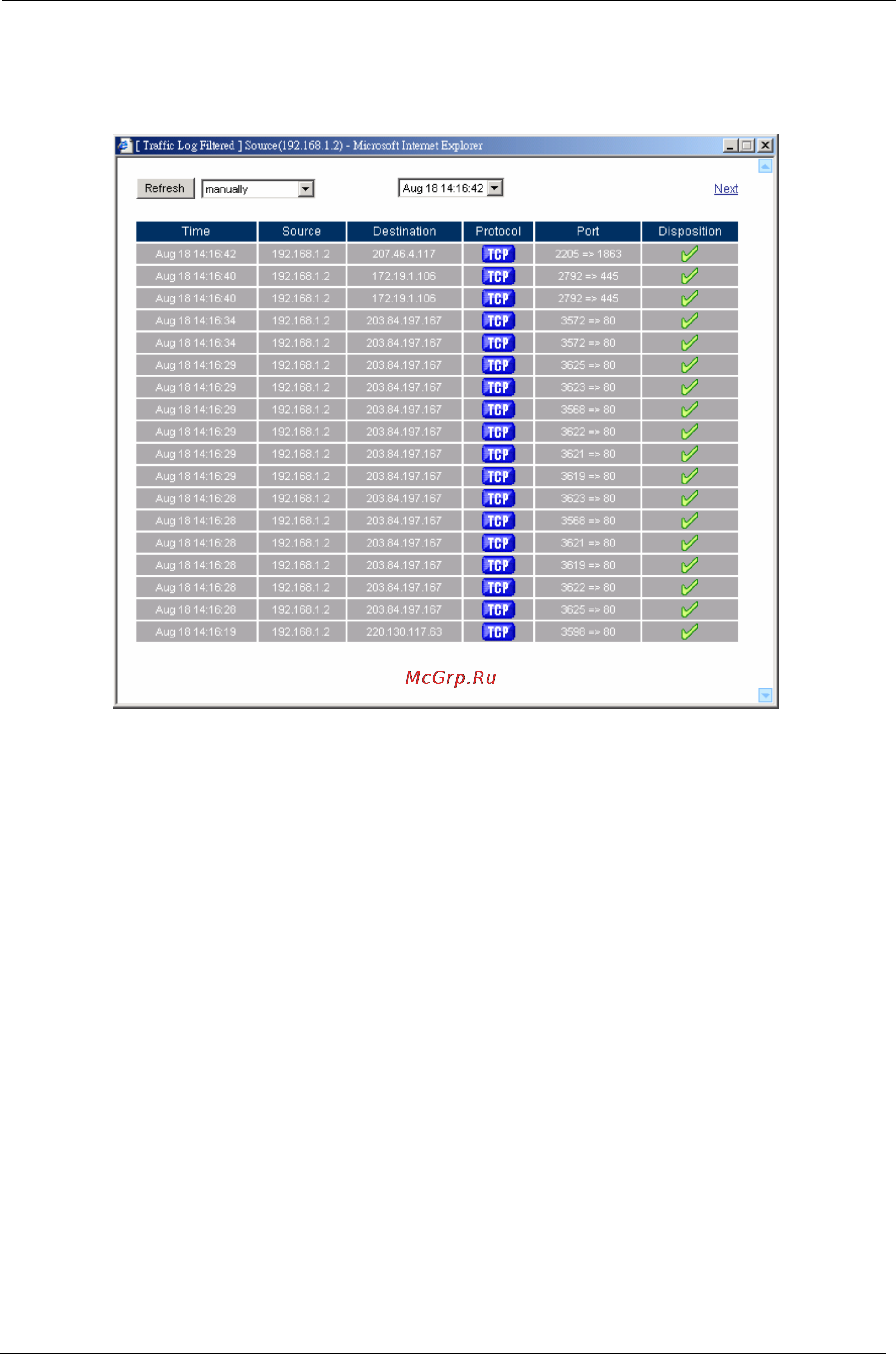

The Web UI of detecting the Traffic Log by IP Address
