SG-500 VPN Security Gateway User’s Manual

- 120 -

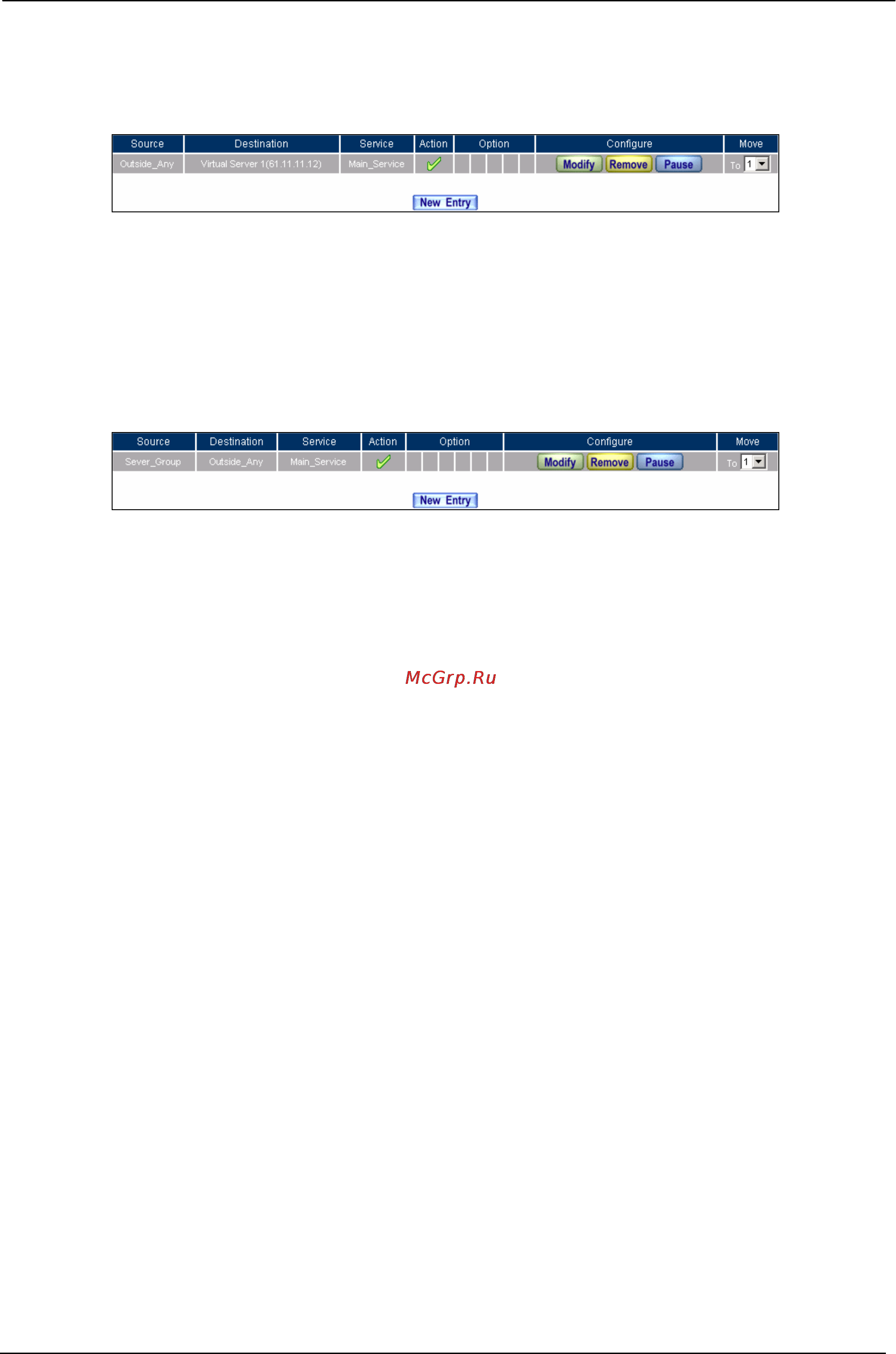

STEP 5﹒Add a new Incoming Policy, which includes the virtual server that set by STEP 3.

Complete Incoming Policy Setting

STEP 6﹒Add a new policy that includes the settings of STEP2, 3 in Outgoing Policy. It makes

server can send e-mail to external mail server by mail service.

Complete Outgoing Policy Setting
