SG-500 VPN Security Gateway User’s Manual

- 147 -

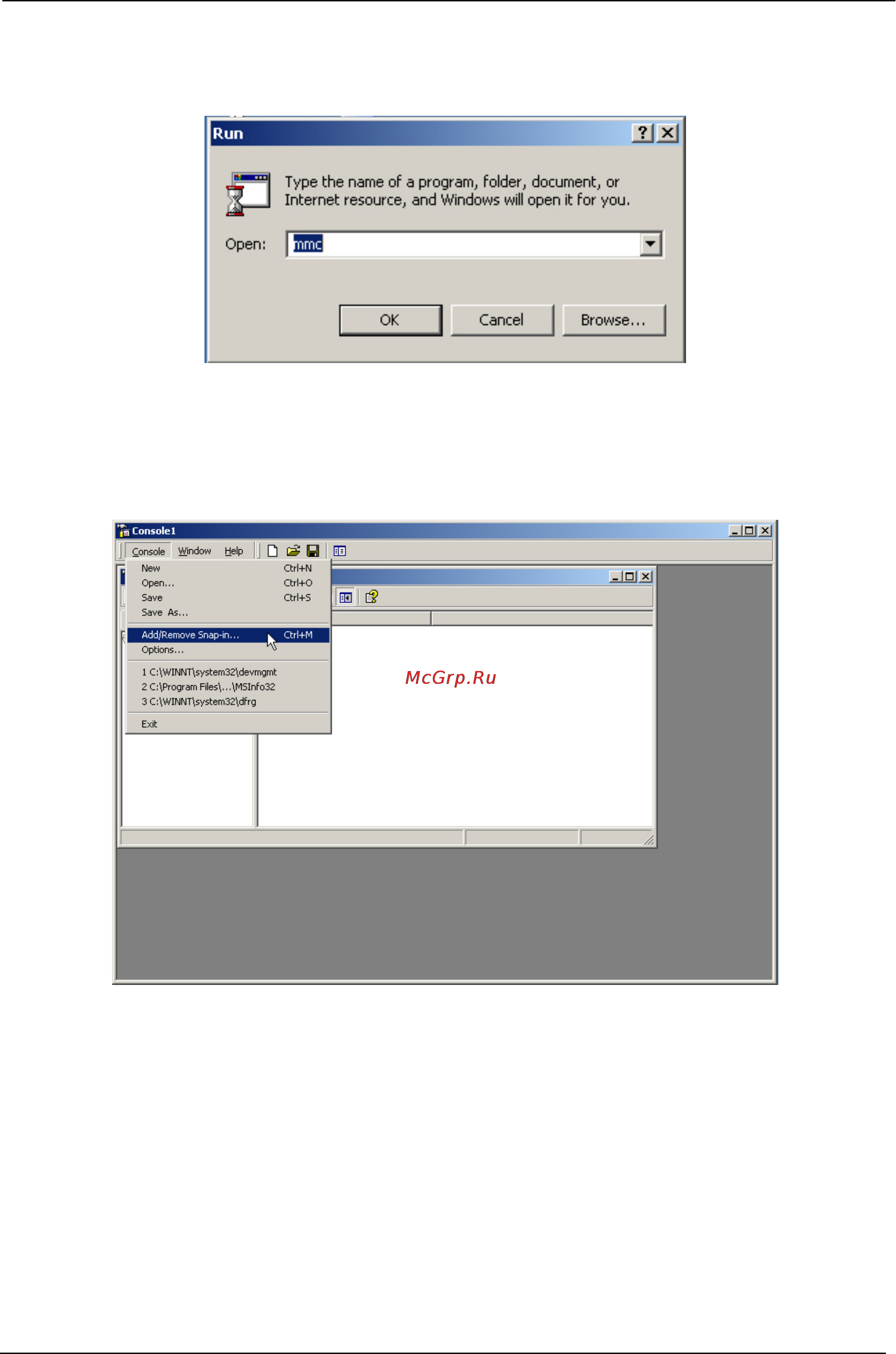

STEP 13 . In Run Æ Open column, enter mmc.

To startup the Windows 2000 IPSec VPN setting

STEP 14 . In Console 1 Æ ConsoleÆ Add/Remove Snap-in.

Add / Remove Snap-in .
