SG-500 VPN Security Gateway User’s Manual

- 148 -

STEP 15 . In Add / Remove Snap-in, click Add. In Add Standalone Snap-in, add IP Security Policy

Management.

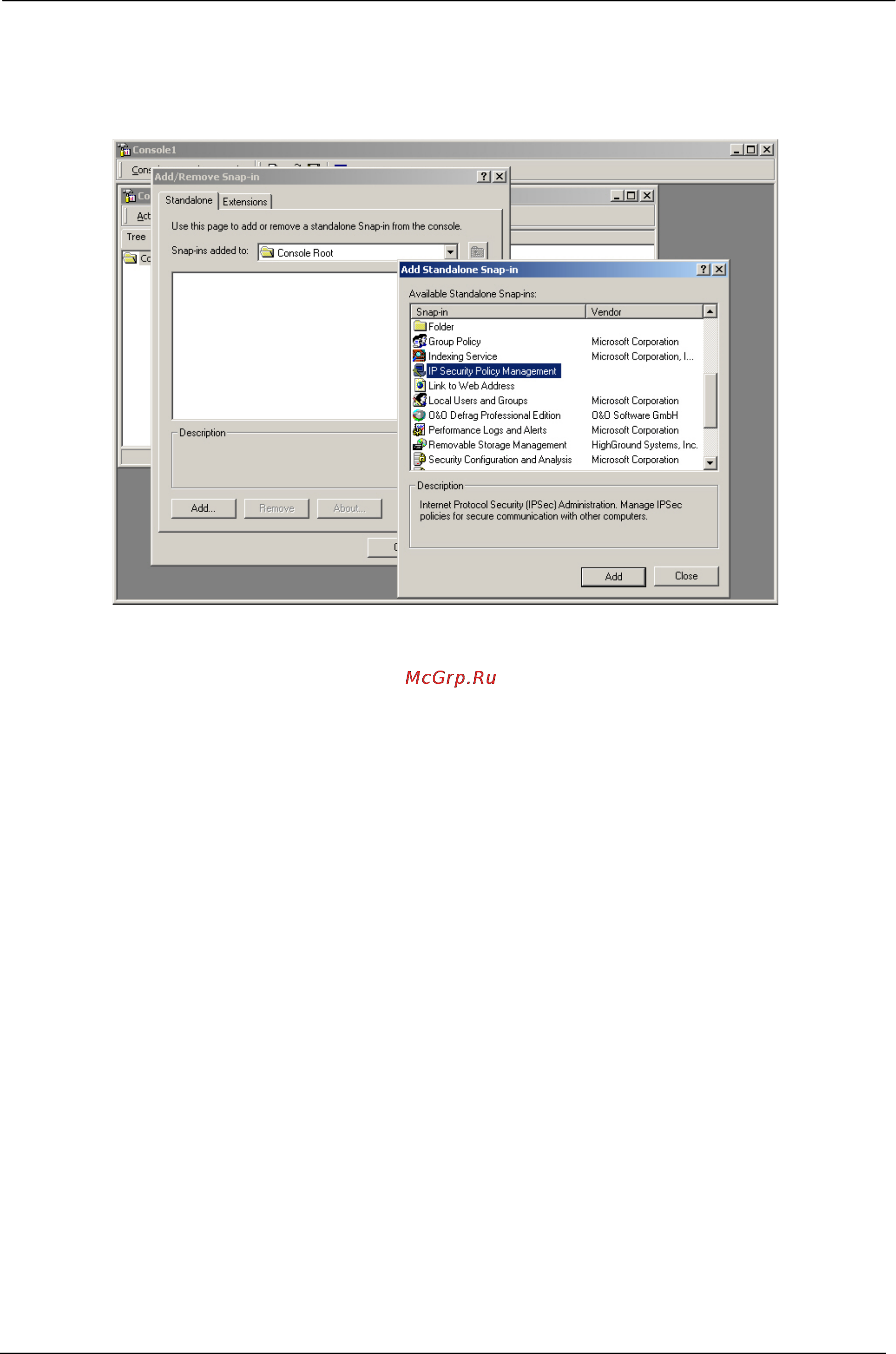

Add IP Security Policy Management
