SG-500 VPN Security Gateway User’s Manual

- 282 -

STEP 2﹒Click on Download Logs and select Save in File Download Web UI. And then choose

the place to save in PC and click OK; the records will be saved instantly.

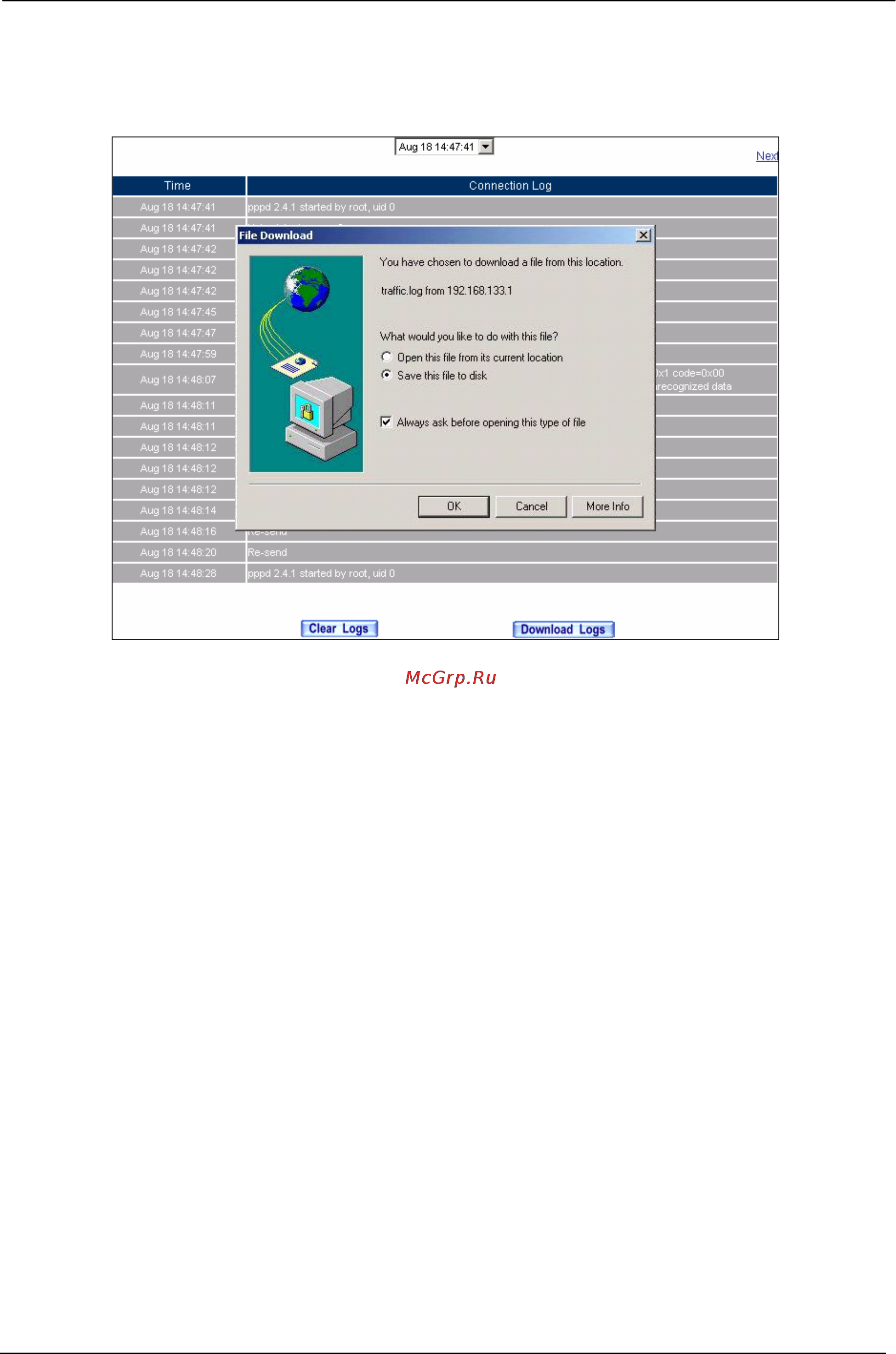

Download Connection Log Records Web UI
