SG-500 VPN Security Gateway User’s Manual

- 283 -

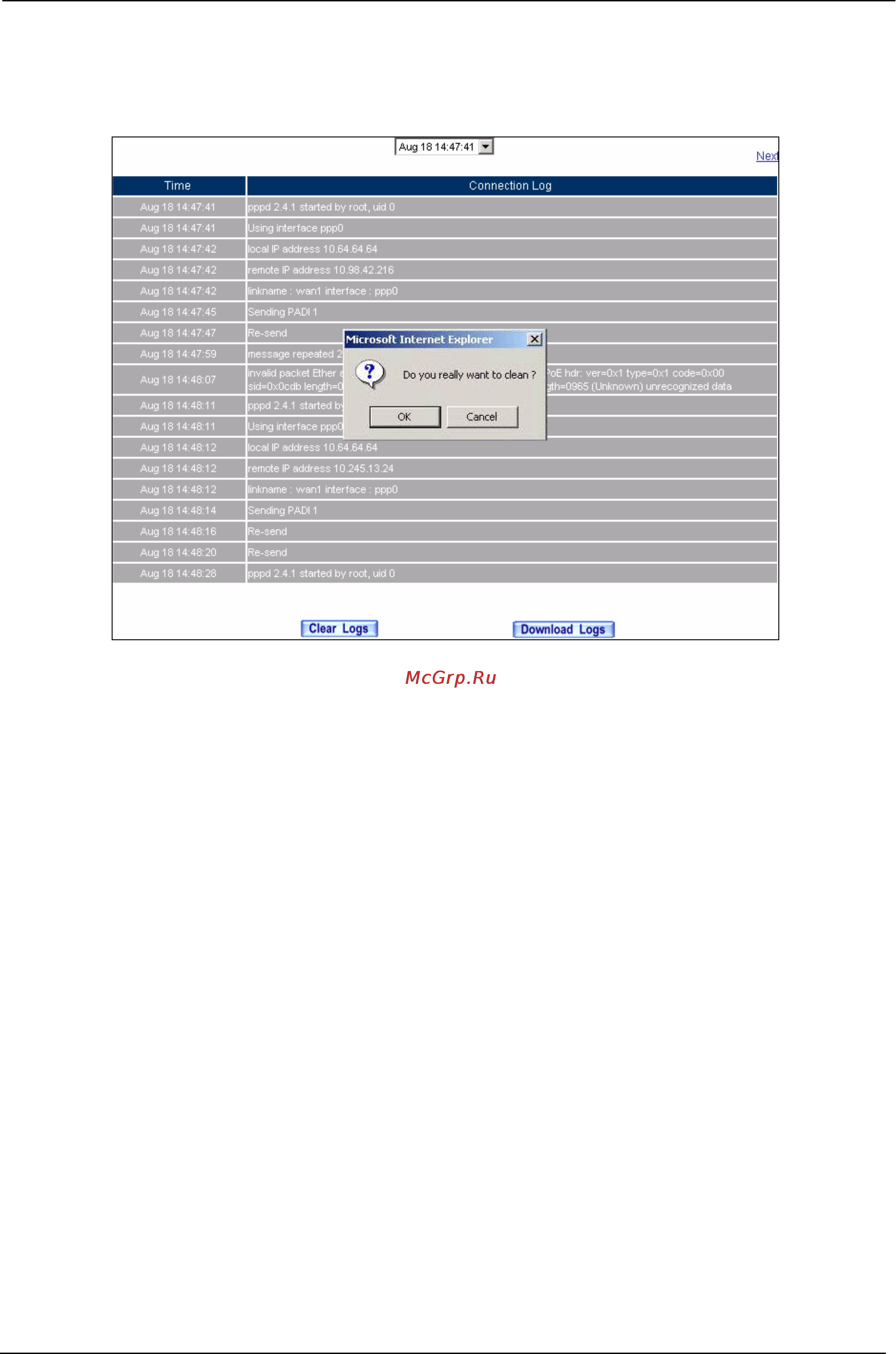

STEP 3﹒ Click Clear Logs and click OK on the confirm Web UI, the records will be deleted

from the SG-500 instantly.

Clearing Connection Log Records Web UI
