SG-500 VPN Security Gateway User’s Manual

- 209 -

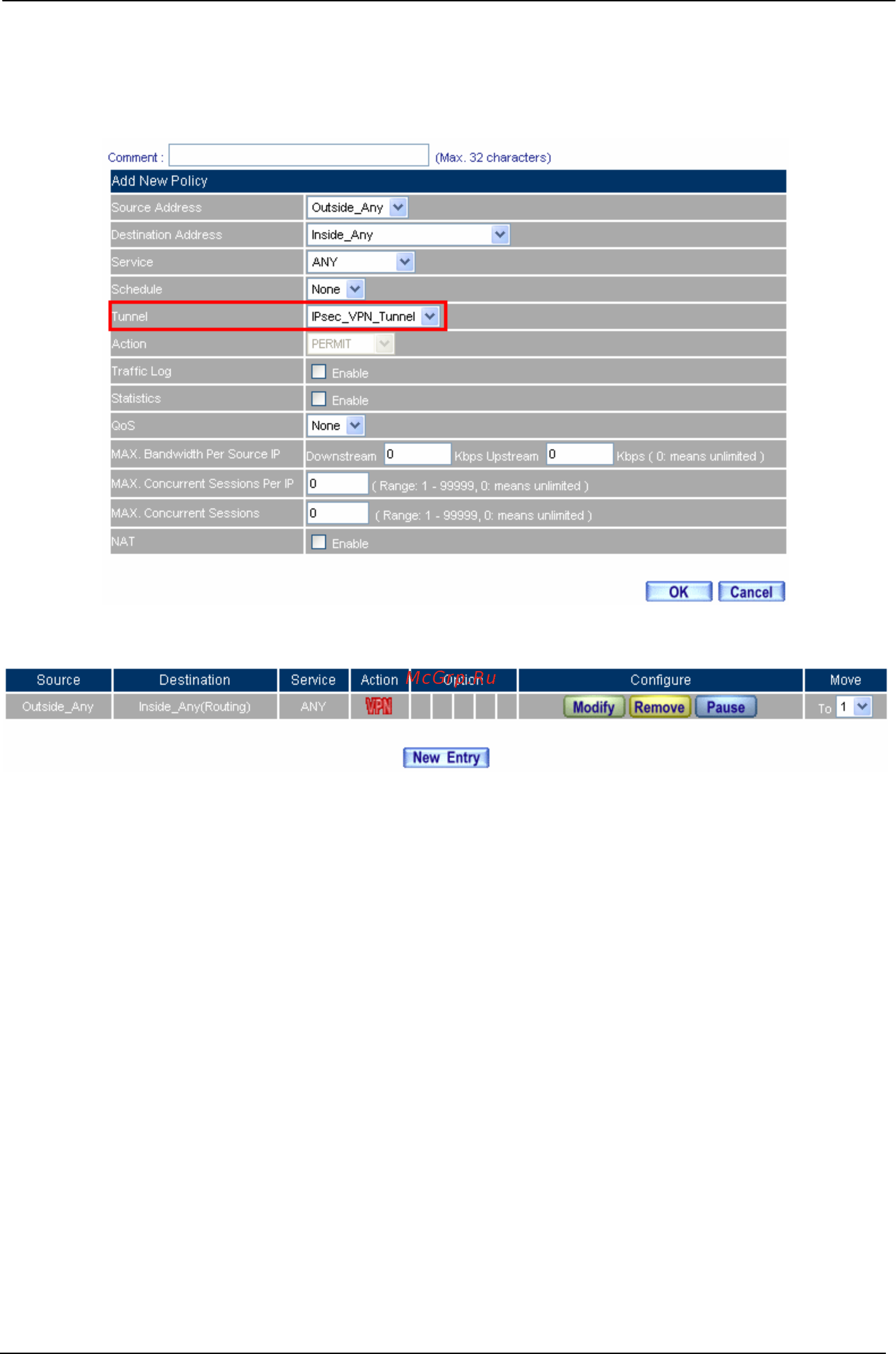

STEP 24 . In Policy Æ Incoming, add the following settings：

Tunnel, select IPSec_VPN_Tunnel.

Click OK.

Set the incoming policy included the VPN Tunnel

Complete the incoming policy setting included the VPN Tunnel

STEP 25 . Complete the IPSec VPN aggressive mode settings.
