SG-500 VPN Security Gateway User’s Manual

- 208 -

STEP 23 . In Policy Æ Outgoing , add the following settings：

Tunnel, select IPSec_VPN_Tunnel.

Click OK.

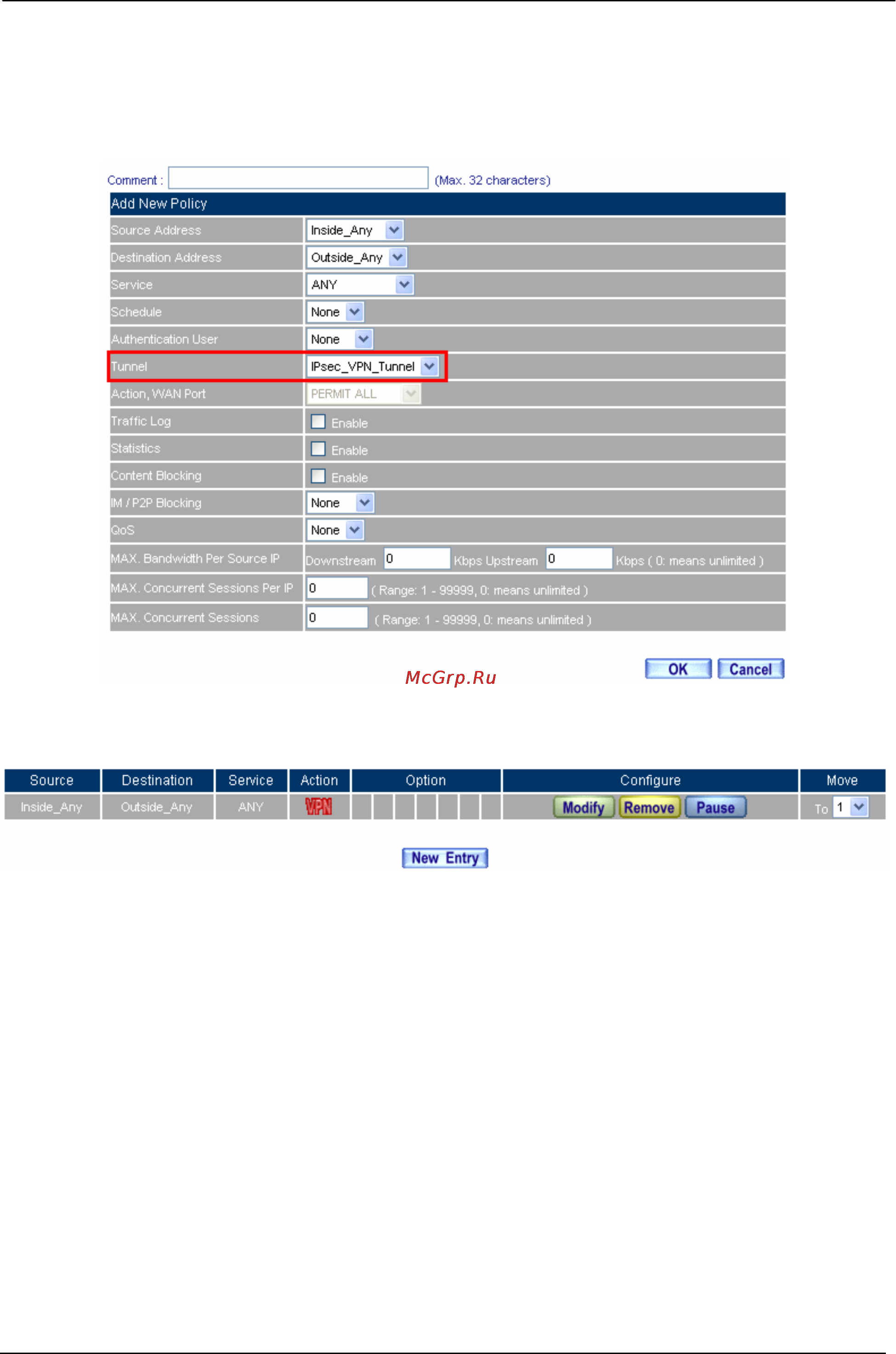

Set the outgoing policy included the VPN Tunnel

Complete the outgoing policy setting included the VPN Tunnel
