SG-500 VPN Security Gateway User’s Manual
- 207 -

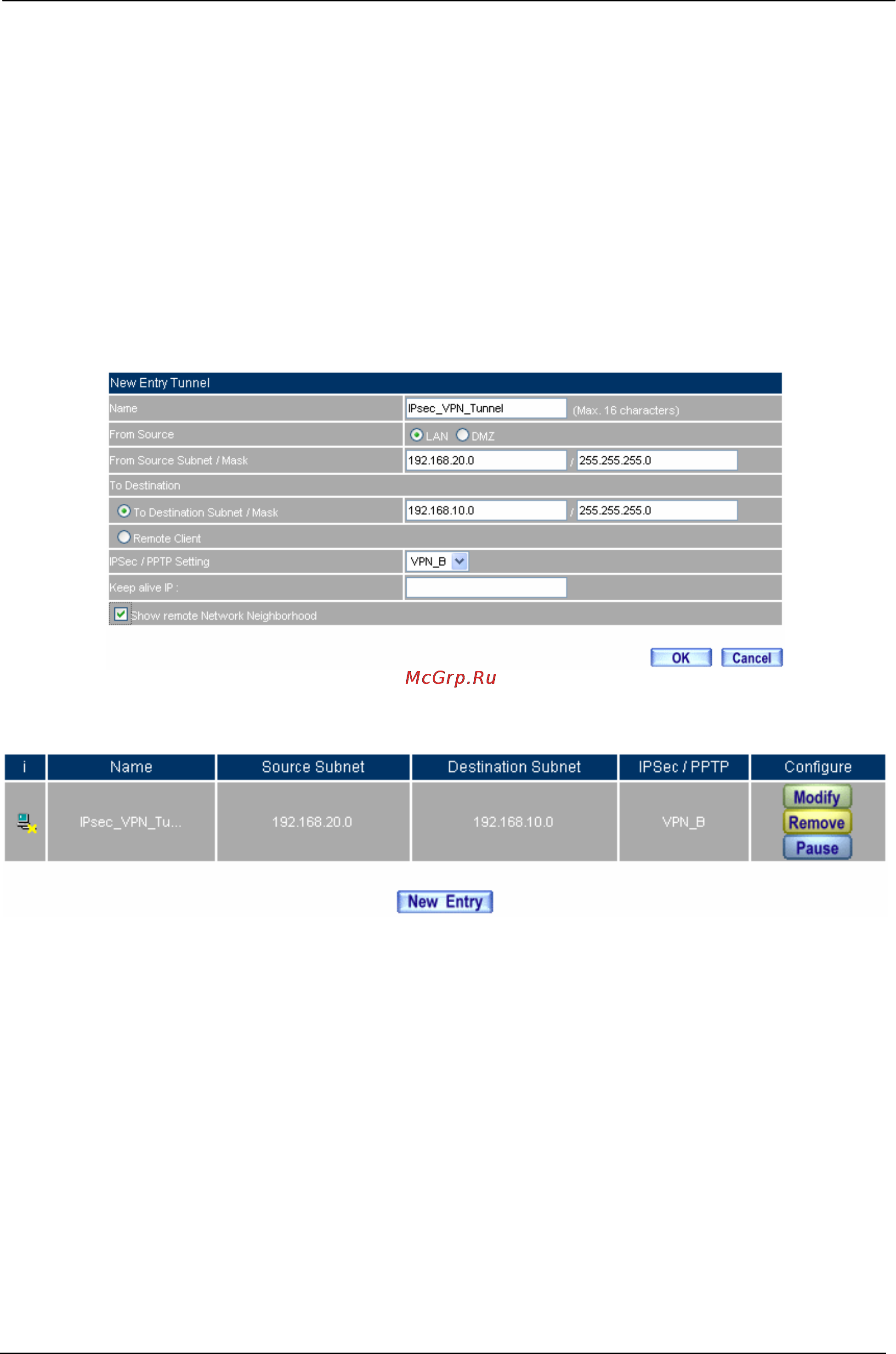

STEP 22 . In VPN Æ TunnelÆ New Entry, add the following settings：
Name, enter the Tunnel Name.
From Source, select LAN.
From Source Subnet / Mask, enter the LAN IP address (B Company) 192.168.20.0 and mask
255.255.255.0.
To Destination, select To Destination Subnet / Mask.
Enter To Destination LAN IP (A Company) 192.168.10.0 and mask 255.255.255.0.
IPSec Setting, select VPN_B.
Select Show remote Network Neighborhood.
Click OK.
Add the VPN Tunnel setting
Complete to add the VPN Tunnel setting
