SG-500 VPN Security Gateway User’s Manual

- 66 -

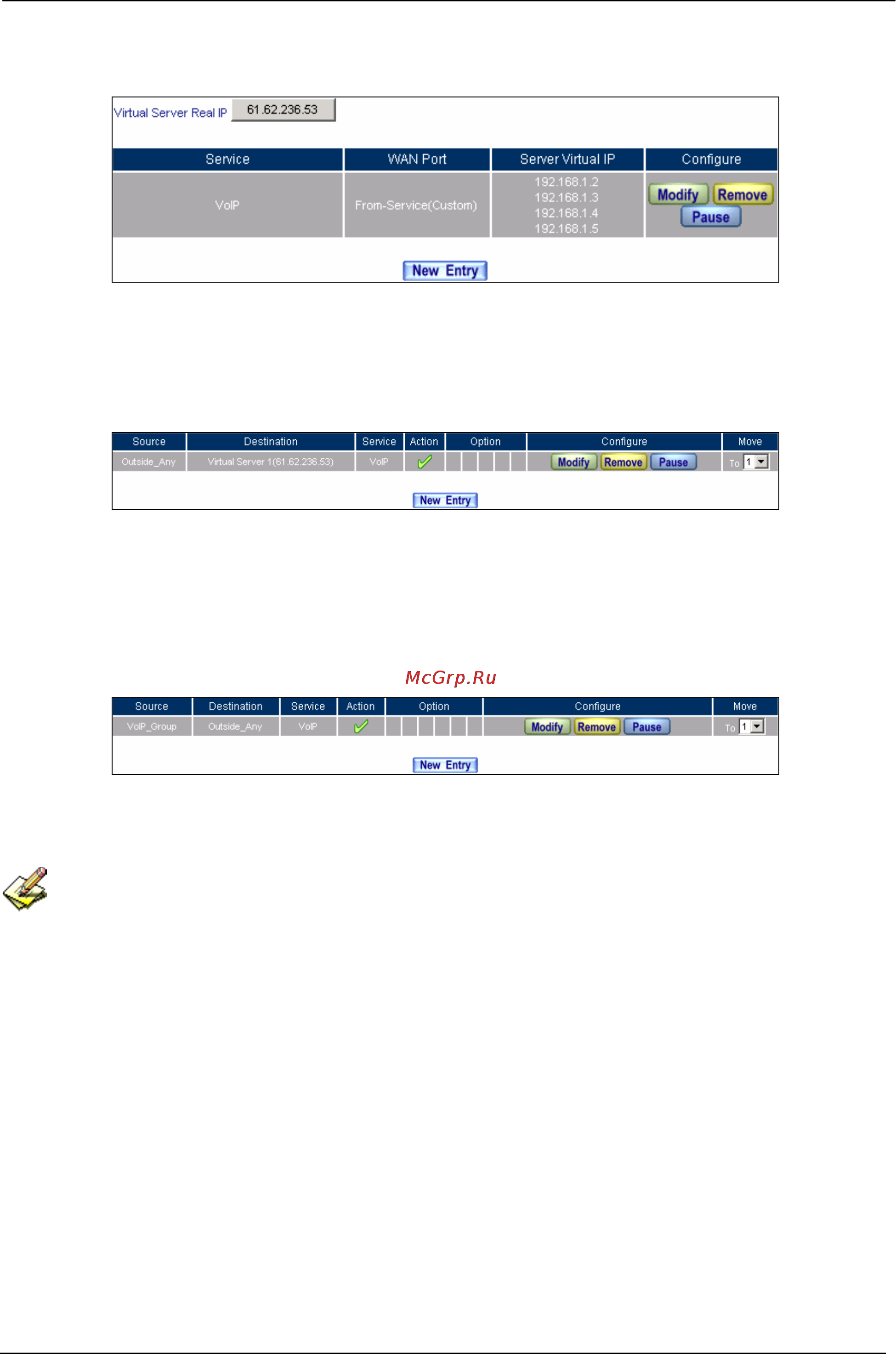

STEP 3﹒Compare Service to Virtual Server.

Compare Service to Virtual Server

STEP 4﹒Compare Virtual Server to Incoming Policy.

Complete the Policy for External VoIP to Connect with Internal VoIP

STEP 5﹒In Outgoing Policy, complete the setting of internal users using VoIP to connect with

external network VoIP:

Complete the Policy for Internal VoIP to Connect with External VoIP

Service must cooperate with Policy and Virtual Server that the function can take effect
