SG-500 VPN Security Gateway User’s Manual

- 132 -

STEP 11 . Enter the following setting in Incoming Policy:

 Tunnel: Select IPSec_VPN_Tunnel.

 Click OK.

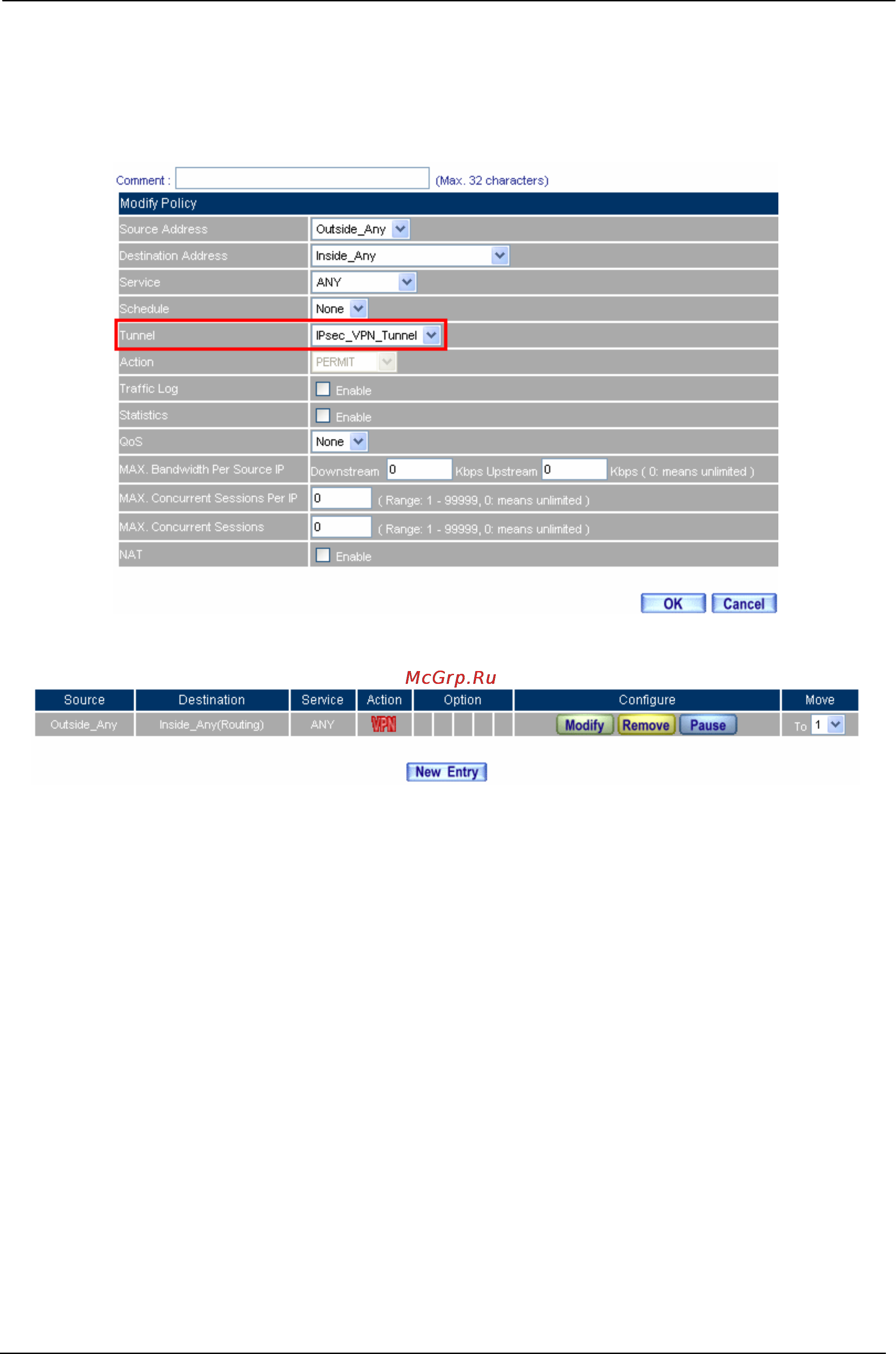

Setting the VPN Tunnel Incoming Policy

Complete the VPN Tunnel Incoming Policy Setting
