SG-500 VPN Security Gateway User’s Manual

- 131 -

STEP 10 . Enter the following setting in Outgoing Policy:

 Tunnel: Select IPSec_VPN_Tunnel.

 Click OK.

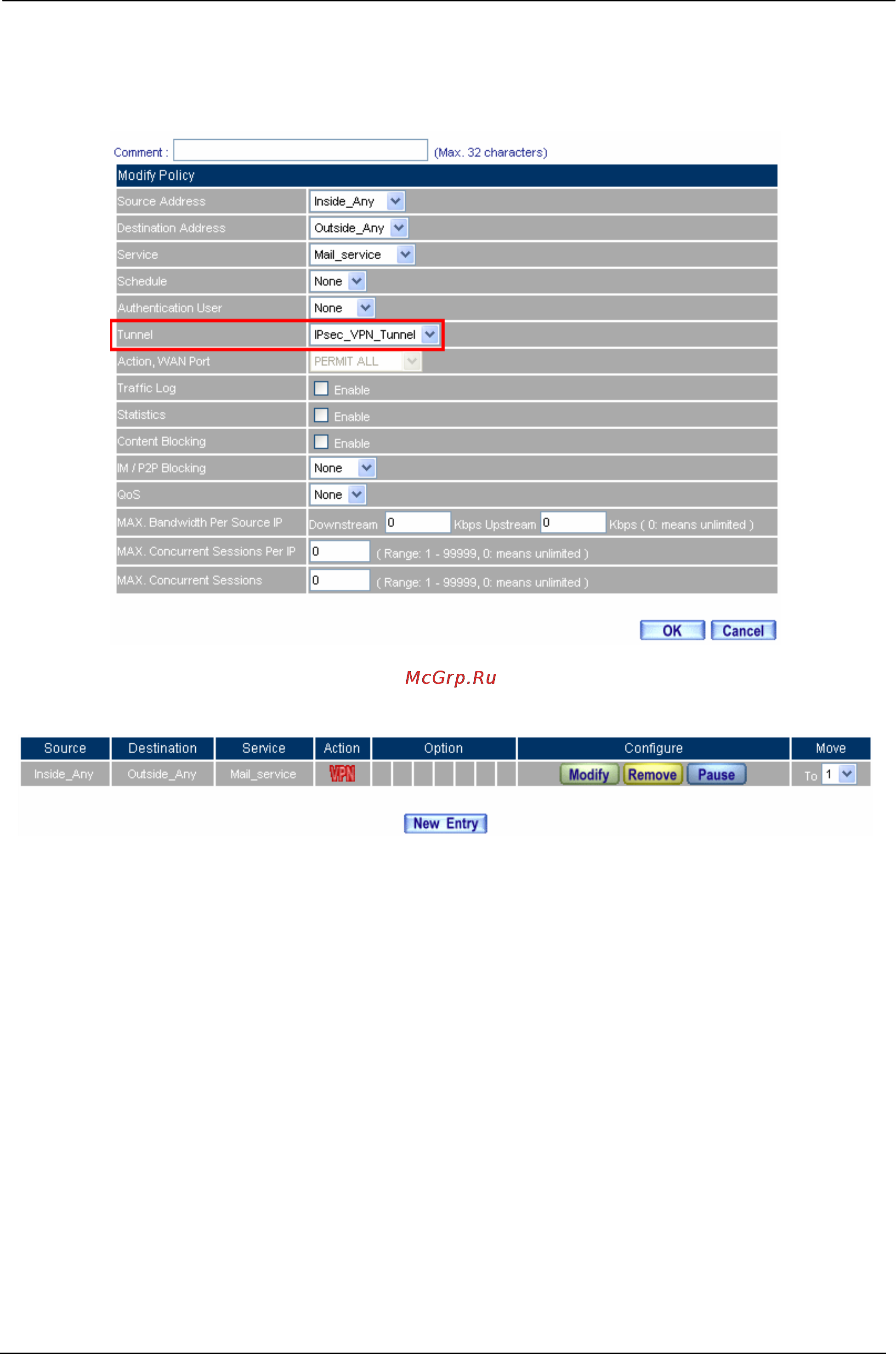

Setting the VPN Tunnel Outgoing Policy

Complete the VPN Tunnel Outgoing Policy Setting
