SG-500 VPN Security Gateway User’s Manual

- 230 -

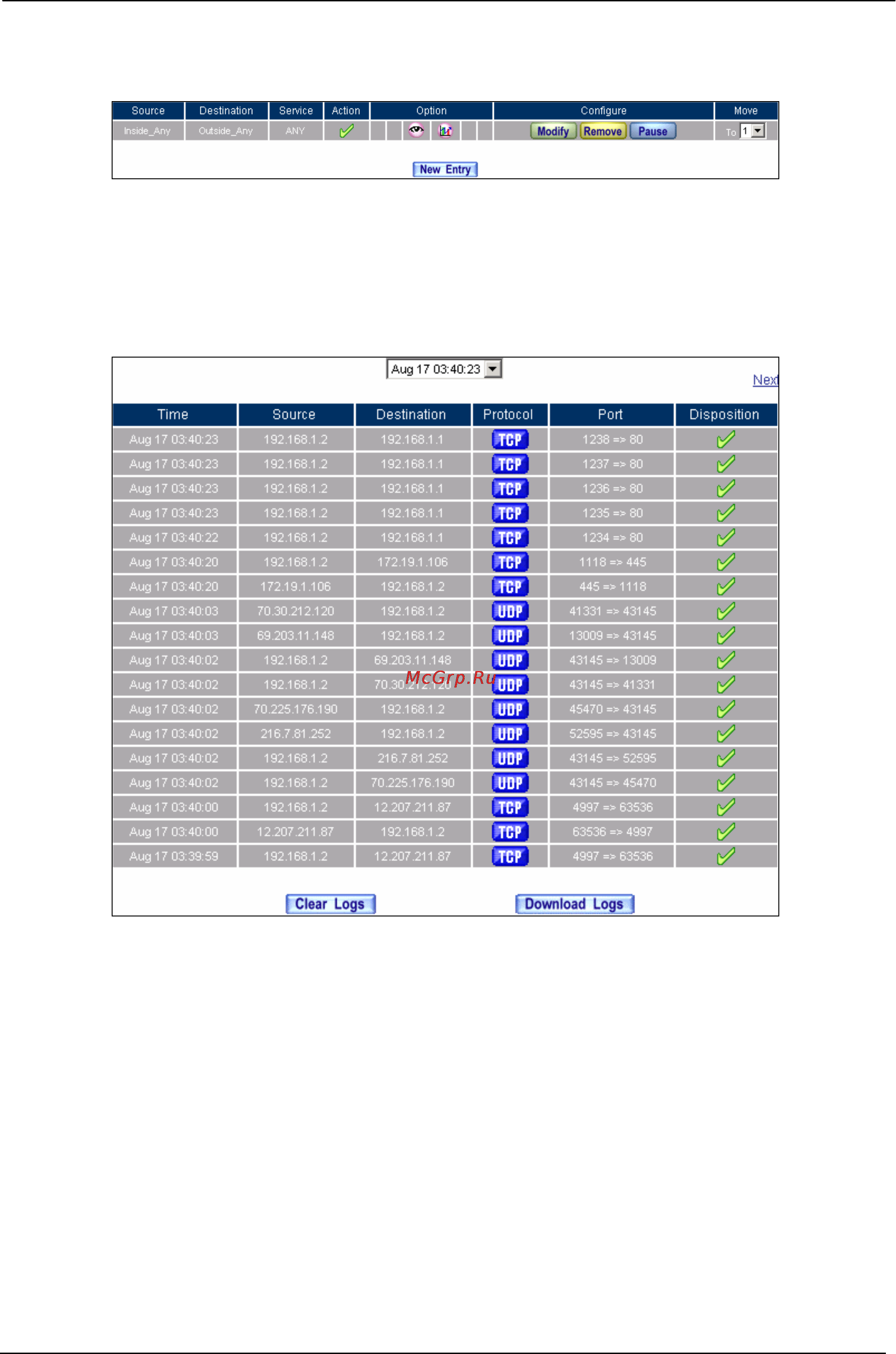

STEP 2﹒Complete the setting of Logging, Statistics, and Alarm Threshold in Outgoing Policy.

Complete Policy Setting

STEP 3﹒Obtain the information in Traffic of Log function if you want to monitor all the packets

of the SG-500.

Traffic Log Monitor Web UI
