SG-500 VPN Security Gateway User’s Manual

- 116 -

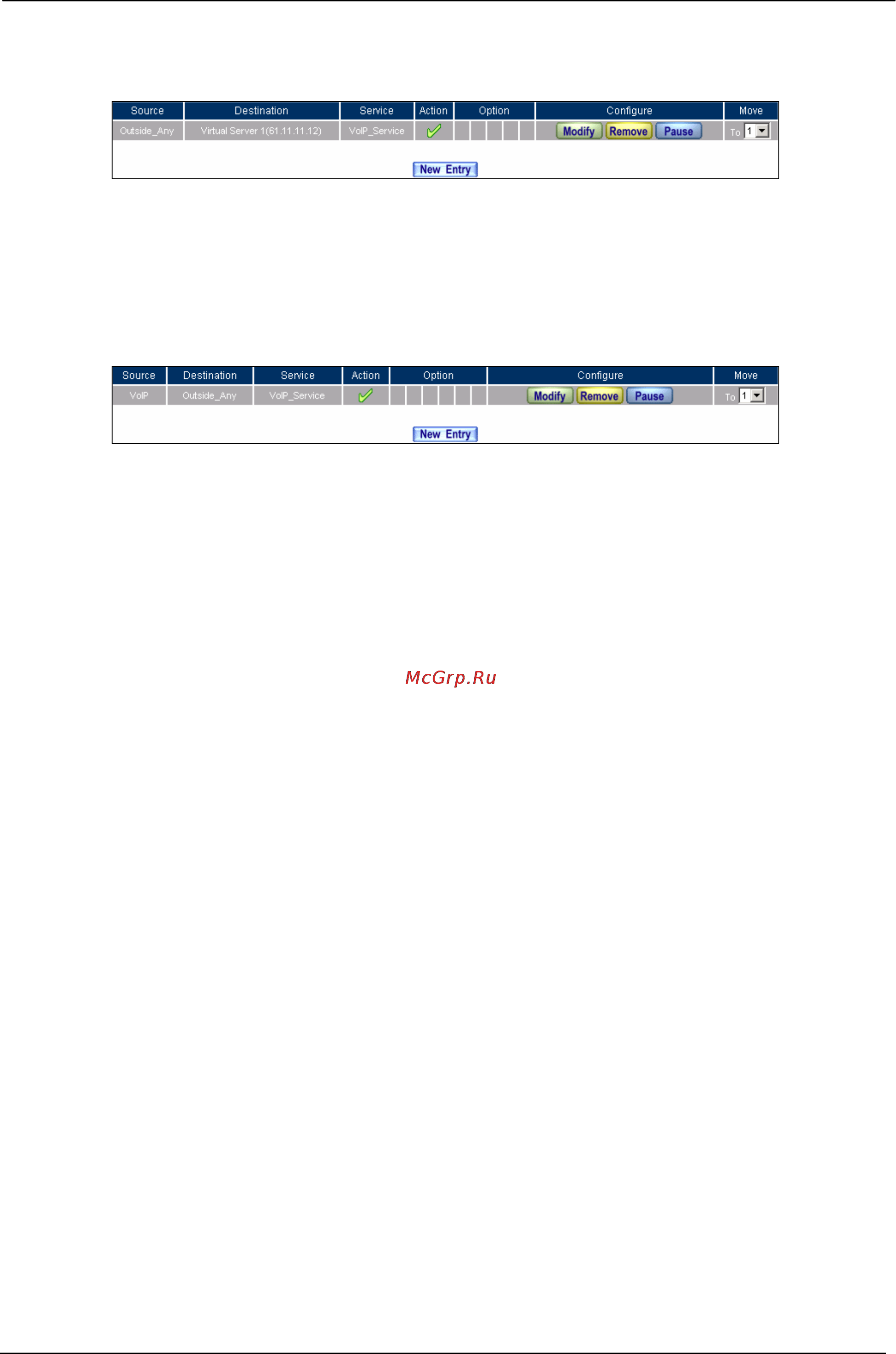

STEP 5﹒Add a new Incoming Policy, which includes the virtual server that set by STEP4.

Complete the Policy includes Virtual Server Setting

STEP 6﹒Enter the following setting of the internal users using VoIP to connect with external

network VoIP in Outgoing Policy.

Complete the Policy Setting of VoIP Connection
