SG-500 VPN Security Gateway User’s Manual
- 135 -

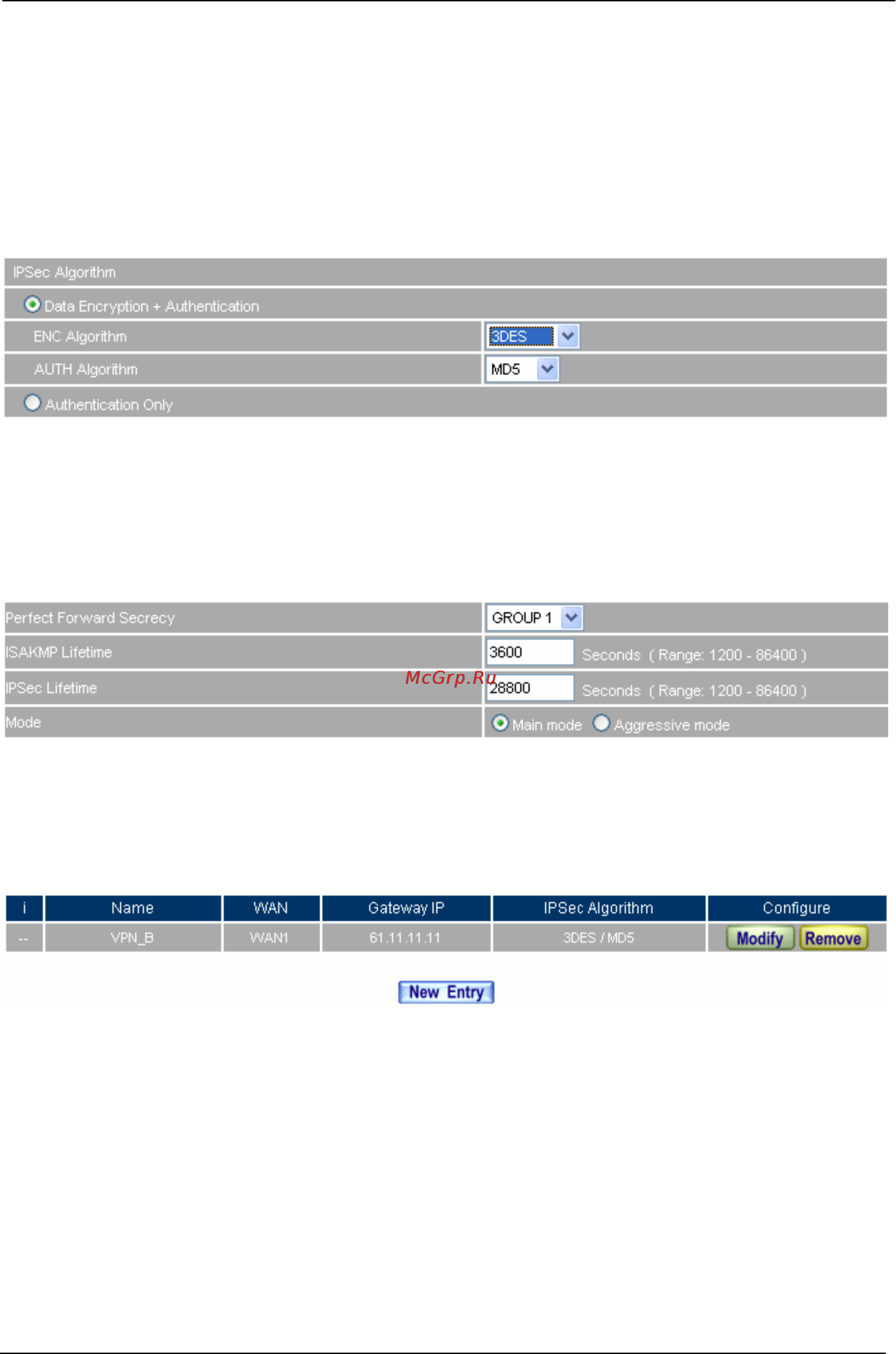

STEP 18 . You can choose Data Encryption + Authentication or Authentication Only to communicate in IPSec
Algorithm list:
ENC Algorithm: 3DES/DES/AES/NULL
AUTH Algorithm: MD5/SHA1
Here we select 3DES for ENC Algorithm and MD5 for AUTH Algorithm to make sure the encapsulation
way for data transmission.
IPSec Algorithm Setting
STEP 19 . After selecting GROUP1 in Perfect Forward Secrecy, enter 3600 seconds in ISAKMP Lifetime,
enter 28800 seconds in IPSec Lifetime, and selecting Main mode in Mode.
Figure11-26 IPSec Perfect Forward Secrecy Setting
STEP 20 . Complete the IPSec Autokey setting.
Complete Company B IPSec Autokey Setting
